Main Control Cover: Installation

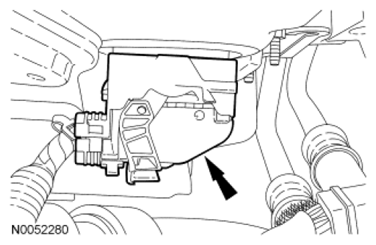

Inspect the transaxle main control cover seal for damage and install new if necessary.

Fig 1: Locating Transaxle Main Control Cover Seal
Courtesy of FORD MOTOR CO.

NOTE: Inspect the 20-pin solenoid body connector seal to make sure that the seal is on the inside of the main control cover or a transmission fluid leak will occur resulting in transmission damage.

NOTE: Install the studbolts in the locations noted during disassembly.

Install the main control cover and loosely install the 14 bolts.
1. Bolt location
2. Studbolt location

  Fig 2: Identifying Main Control Cover Bolts
  Courtesy of FORD MOTOR CO.
Tighten the main control cover bolts in the sequence shown in illustration.
- Tighten to 12 Nm (106 lb-in).

  Fig 3: Identifying Main Control Cover Bolts Tighten Sequence
  Courtesy of FORD MOTOR CO.

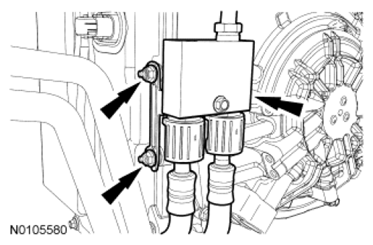

Position the transmission fluid cooler thermal bypass valve and transmission fluid cooler tube assembly in place and install the 2 transmission fluid cooler thermal bypass valve bracket nuts.
- Tighten to 9 Nm (80 lb-in).

  Fig 4: Locating Transmission Fluid Cooler Tube Bracket Nuts
  Courtesy of FORD MOTOR CO.

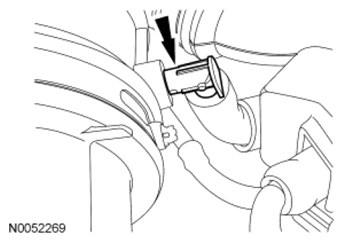

Connect the transaxle electrical connector.

Fig 5: Locating Transaxle Electrical Connector
Courtesy of FORD MOTOR CO.

Inspect the transmission fluid cooler tube backing ring and seal for damage and install a new backing ring or seal if necessary. Lubricate the transmission fluid cooler tube seal with clean transmission fluid and install the backing ring and seal on the transmission fluid cooler tube.

Fig 6: Identifying Backing Ring And Seal

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	7D285	Seal
2	7J324	Backing ring

Position the transmission fluid cooler tube in place and install a new bolt.
- Tighten to 9 Nm (80 lb-in).

  Fig 7: Locating Transmission Fluid Cooler Tube
  Courtesy of FORD MOTOR CO.
Tighten the transmission fluid cooler tube fitting.
- Tighten to 30 Nm (22 lb-ft).

  Fig 8: Locating Transmission Fluid Cooler Tube
  Courtesy of FORD MOTOR CO.

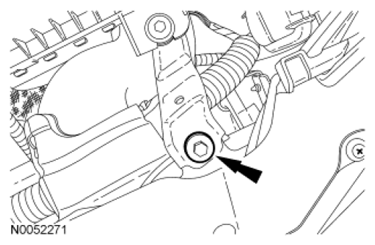

Position the ACL assembly in place and install the bolt.
- Tighten to 11 Nm (97 lb-in).

  Fig 9: Locating ACL Assembly Bracket Bolt
  Courtesy of FORD MOTOR CO.
Tighten the ACL outlet pipe clamp at the TB .
- Tighten to 5 Nm (44 lb-in).

  Fig 10: Locating ACL Outlet Pipe Clamp
  Courtesy of FORD MOTOR CO.
Connect the engine breather to the ACL assembly.

Fig 11: Locating Engine Breather From ACL Assembly
Courtesy of FORD MOTOR CO.
Connect the brake booster vacuum hose to the ACL assembly.

Fig 12: Locating Brake Booster Vacuum Hose
Courtesy of FORD MOTOR CO.

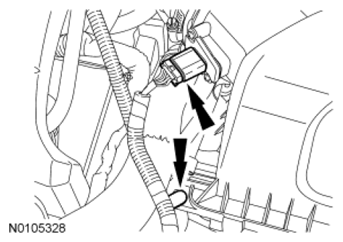

Connect the MAF sensor electrical connector and connect the electrical harness fastener.

Fig 13: Locating MAF Sensor Electrical Connector And Electrical Harness Fastener
Courtesy of FORD MOTOR CO.
Fill with clean transmission fluid to the correct level.
