Passenger Side Front Heated Seat Module Connector - C329

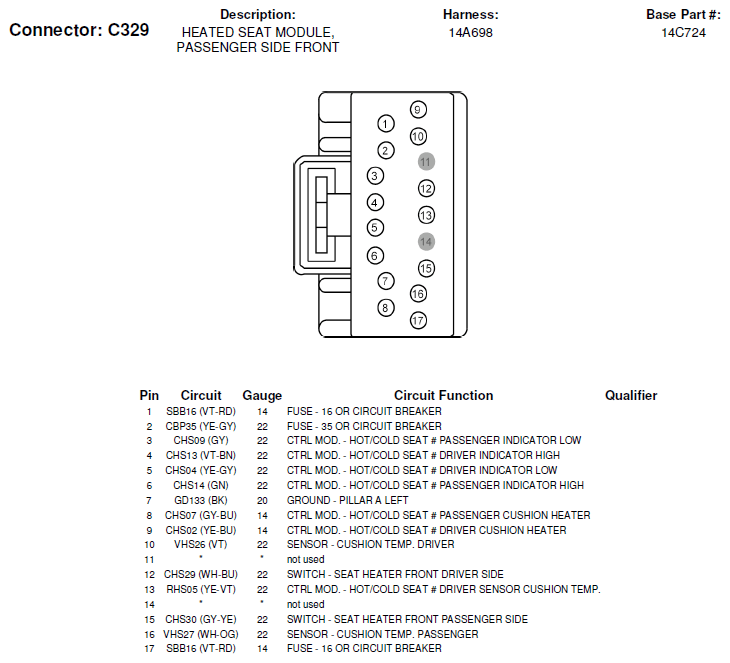

Fig 1: Passenger Side Front Heated Seat Module Connector End View (C329)
G06287157Courtesy of FORD MOTOR CO.
