Test KF: Fan Control (FC)

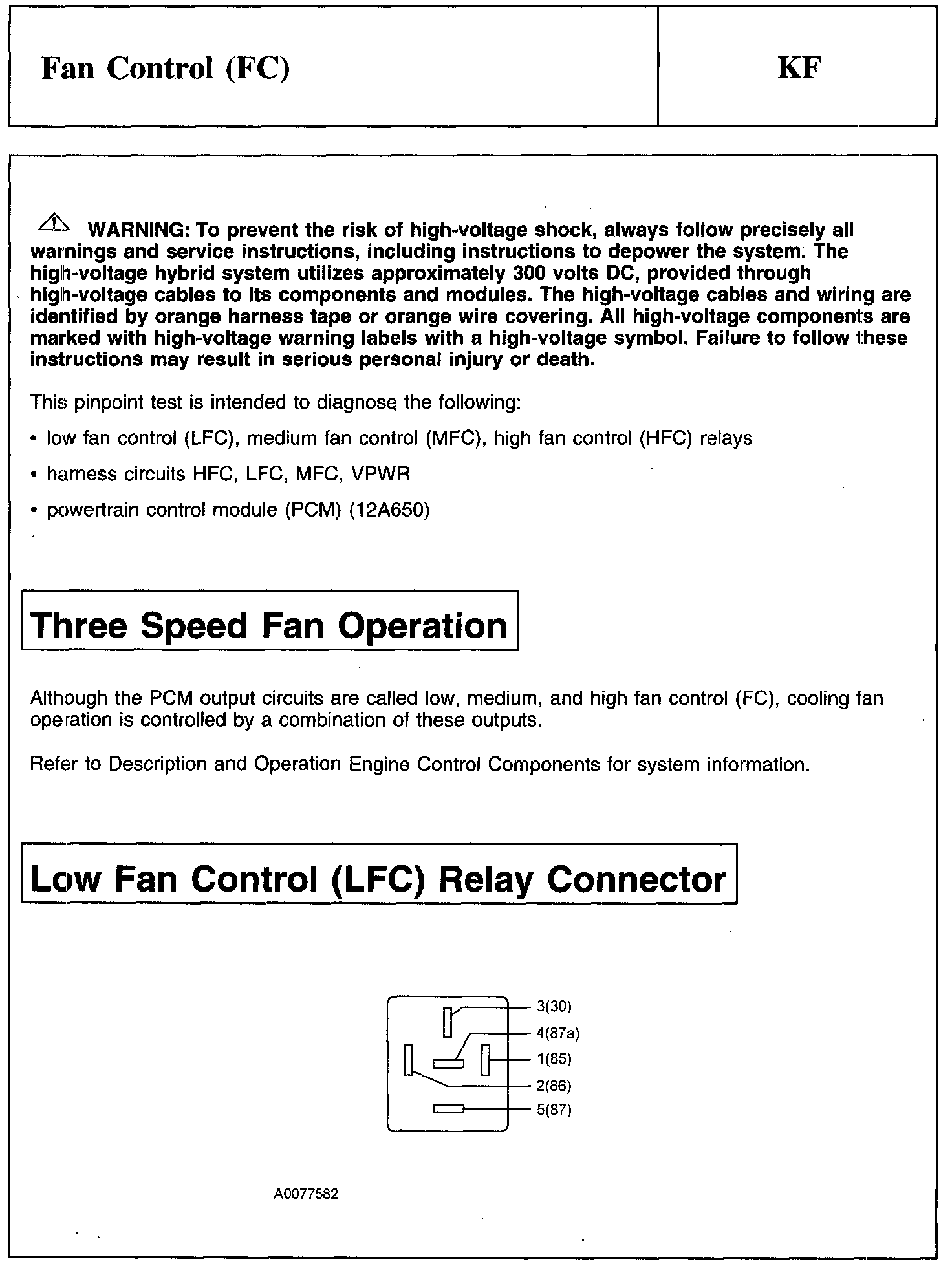

Warning, Three Speed Fan Operation And Low Fan Control (LFC) Relay Connector:

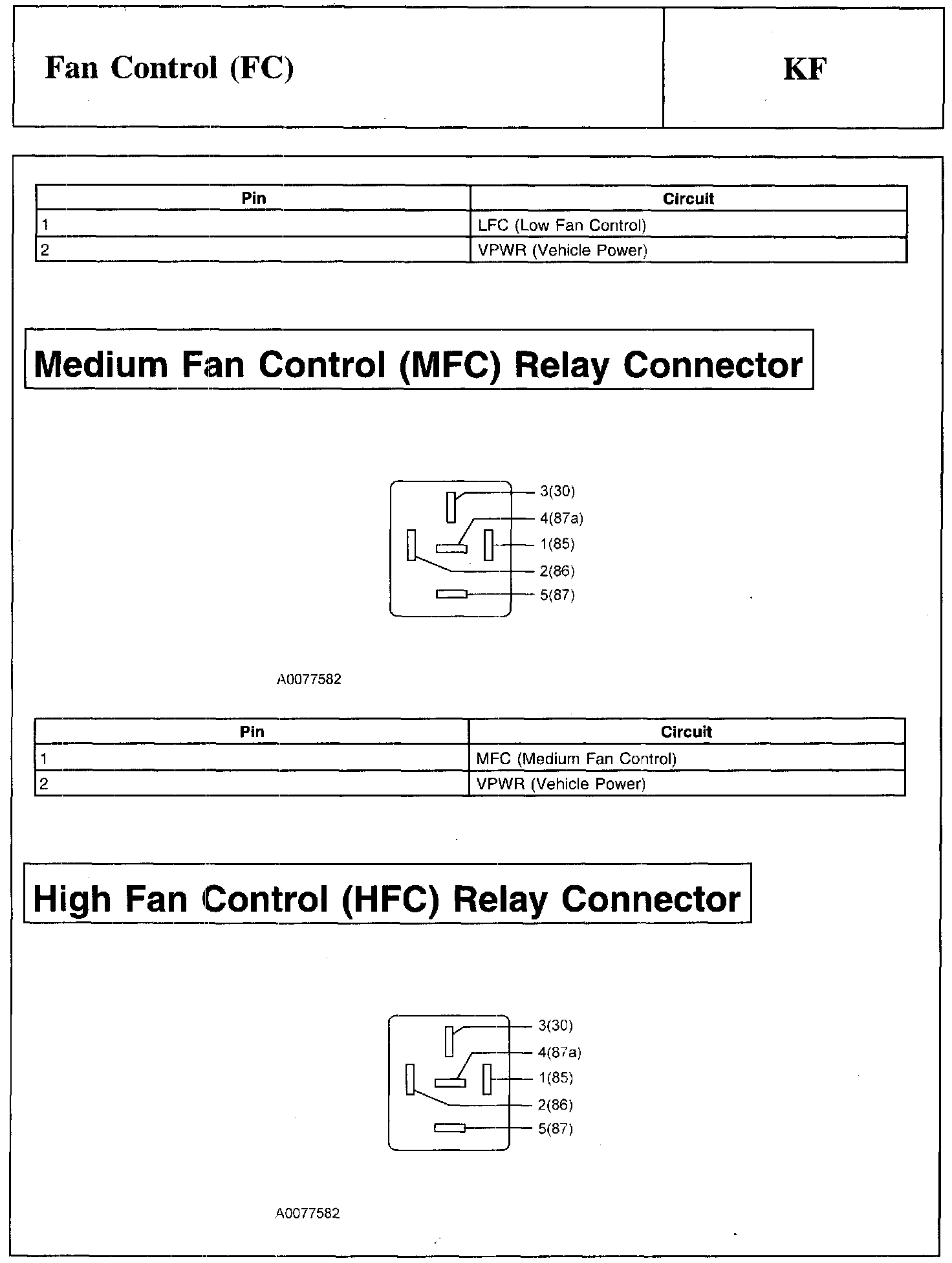

Low Fan Control (LFC) Relay Connector, Medium Fan Control (MFC) Relay Connector And High Fan Control (HFC) Relay Connector:

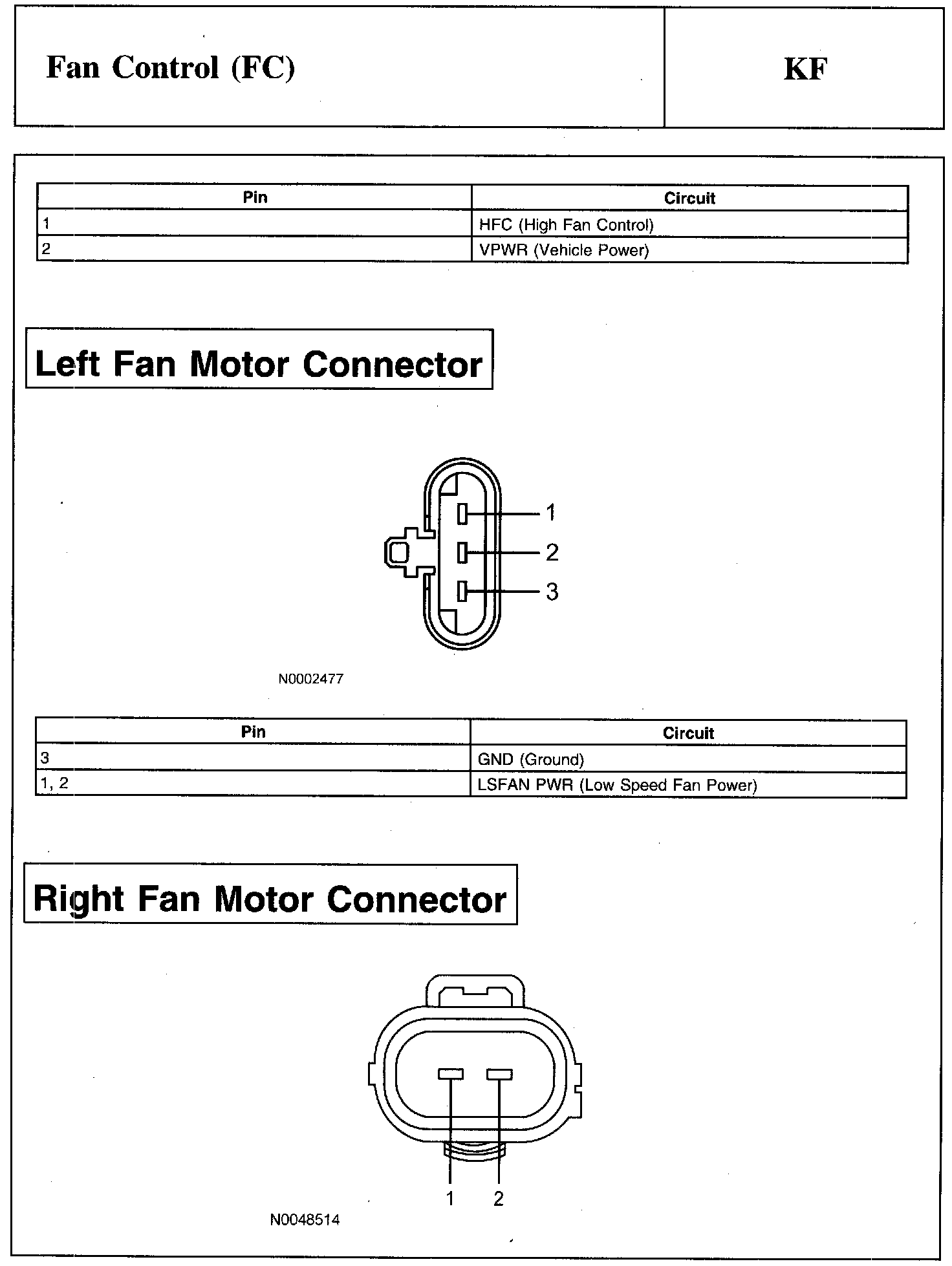

High Fan Control (HFC) Relay Connector, Left Fan Motor Connector And Right Fan Motor Connector:

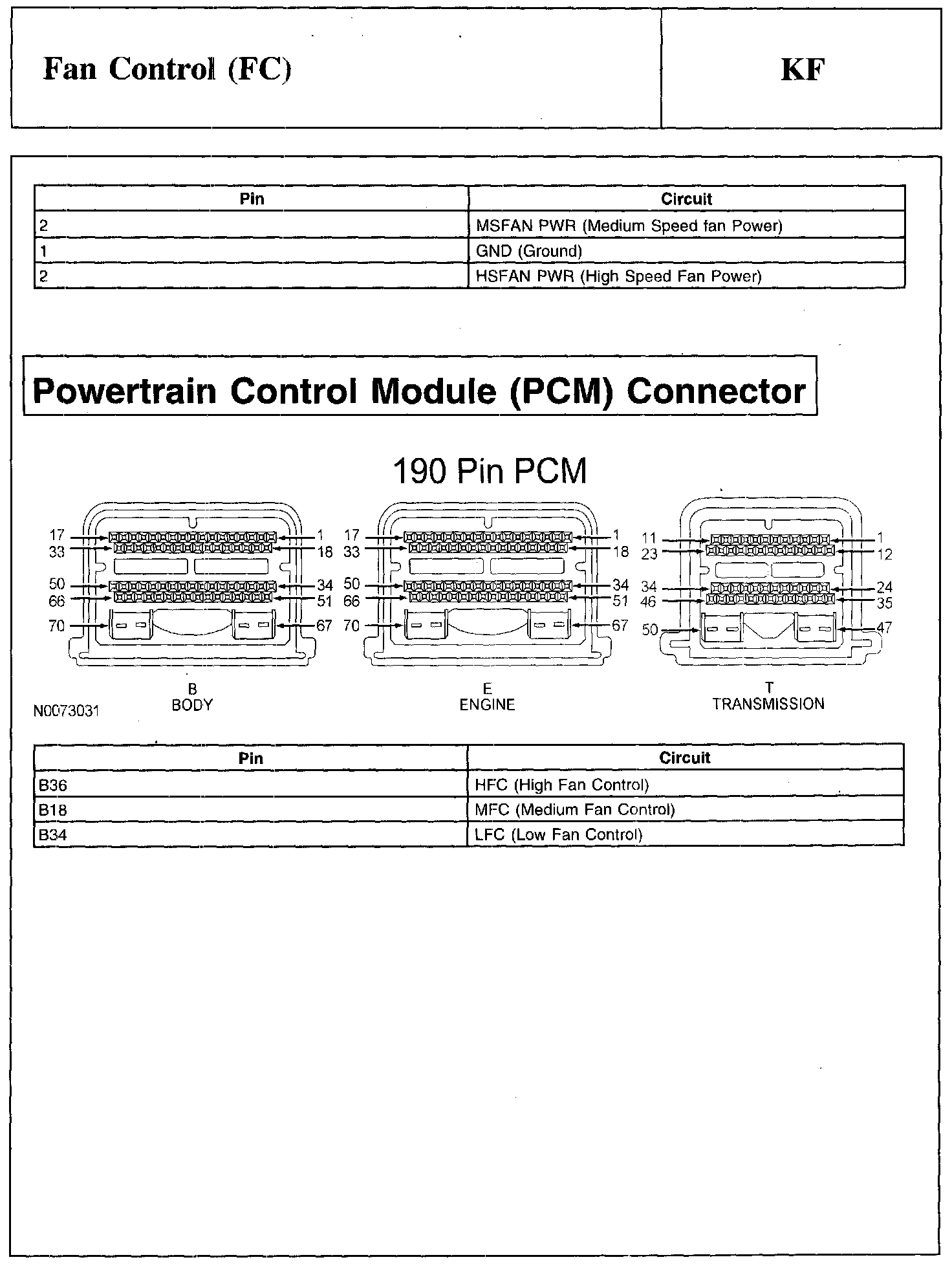

Right Fan Motor Connector And Powertrain Control Module (PCM) Connector:

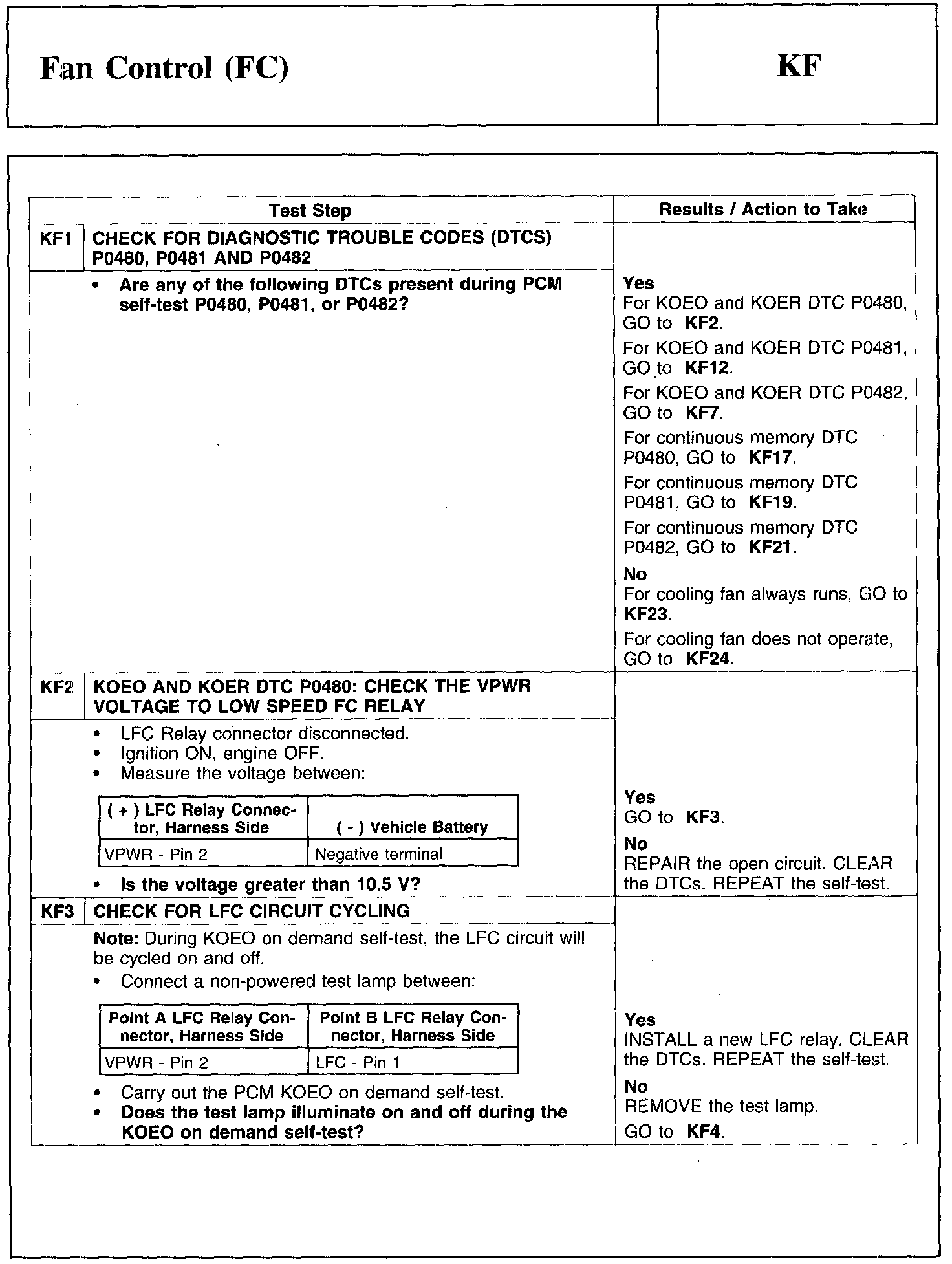

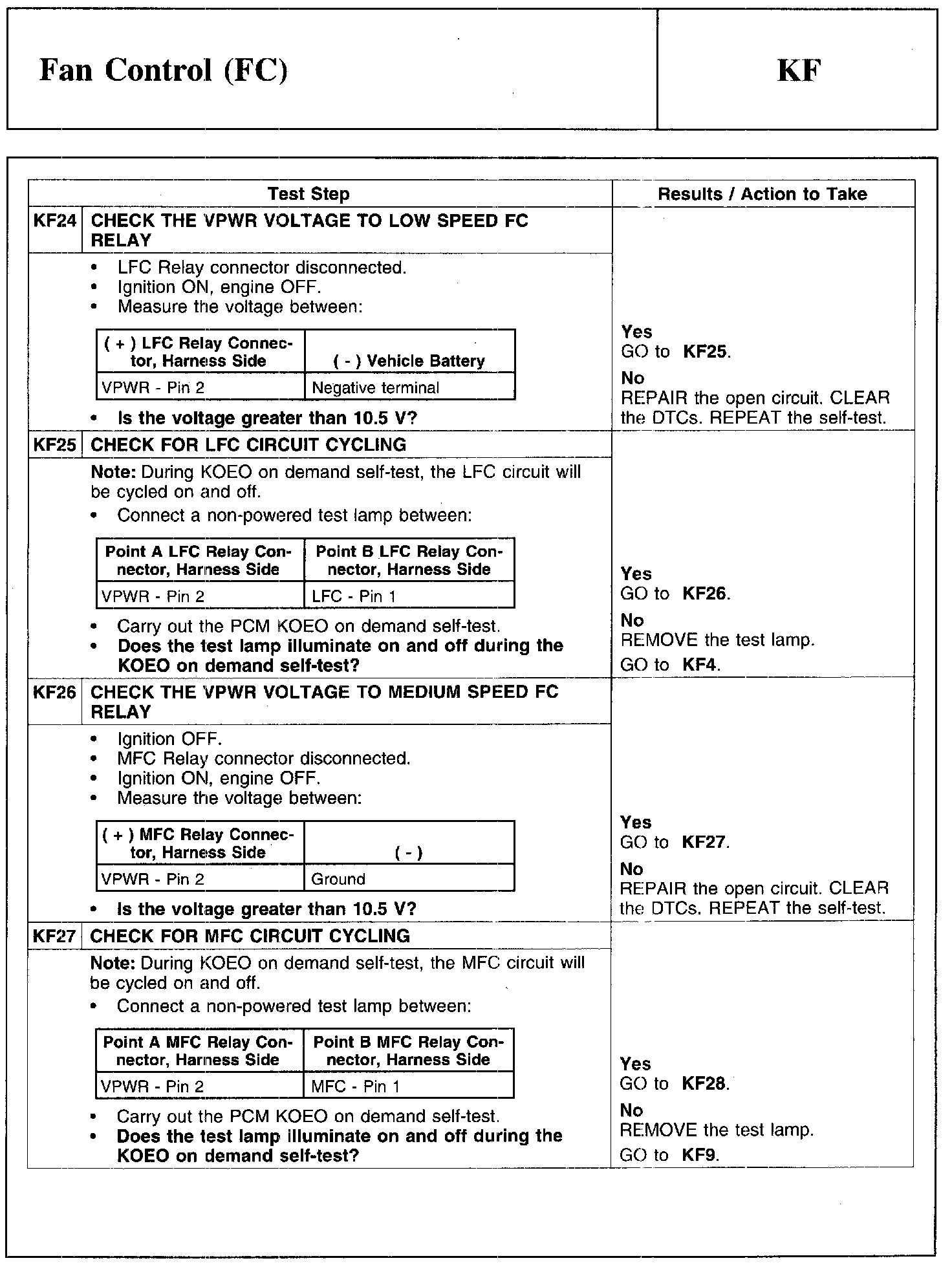

KF1-KF3:

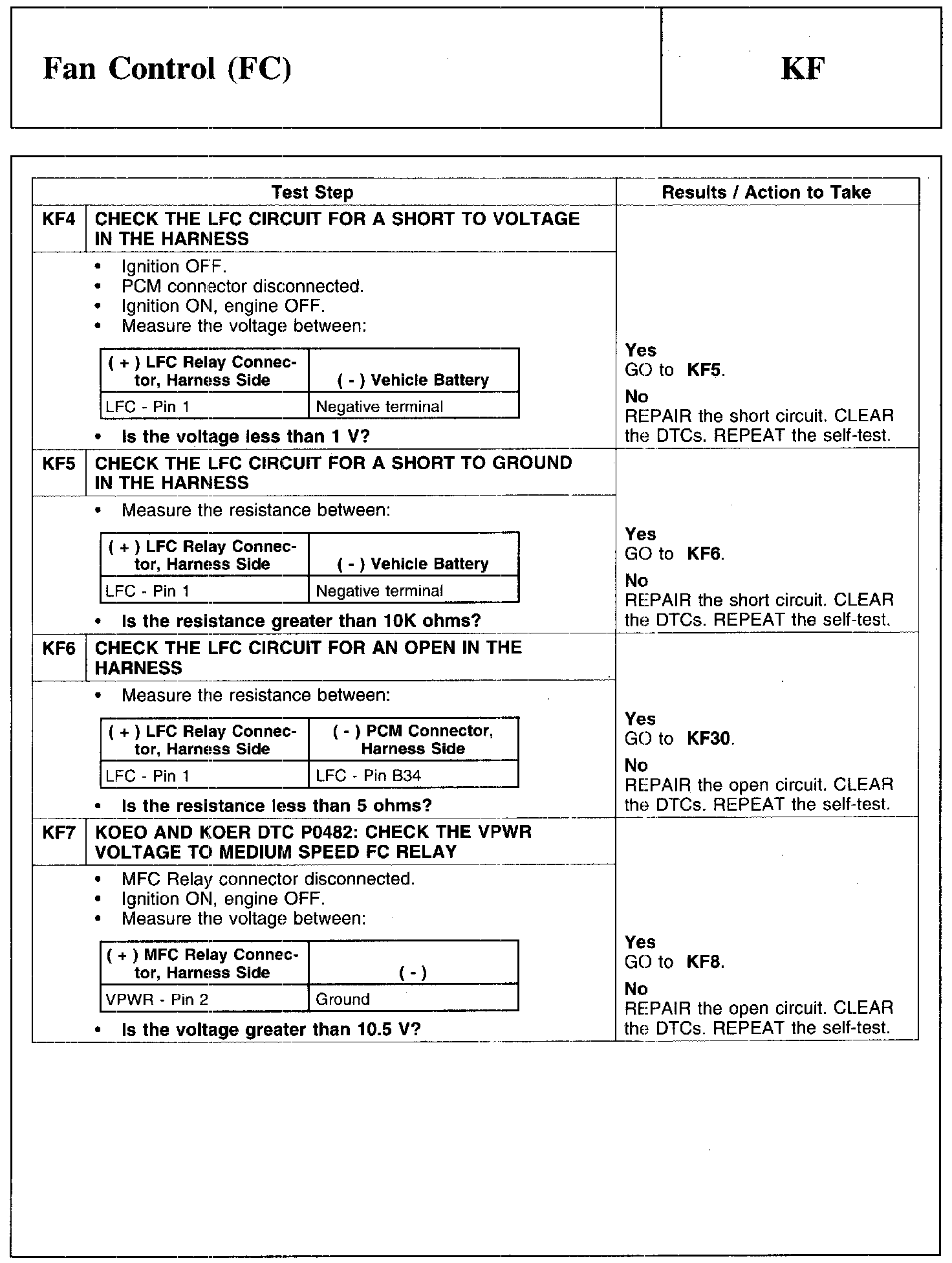

KF4-KF7:

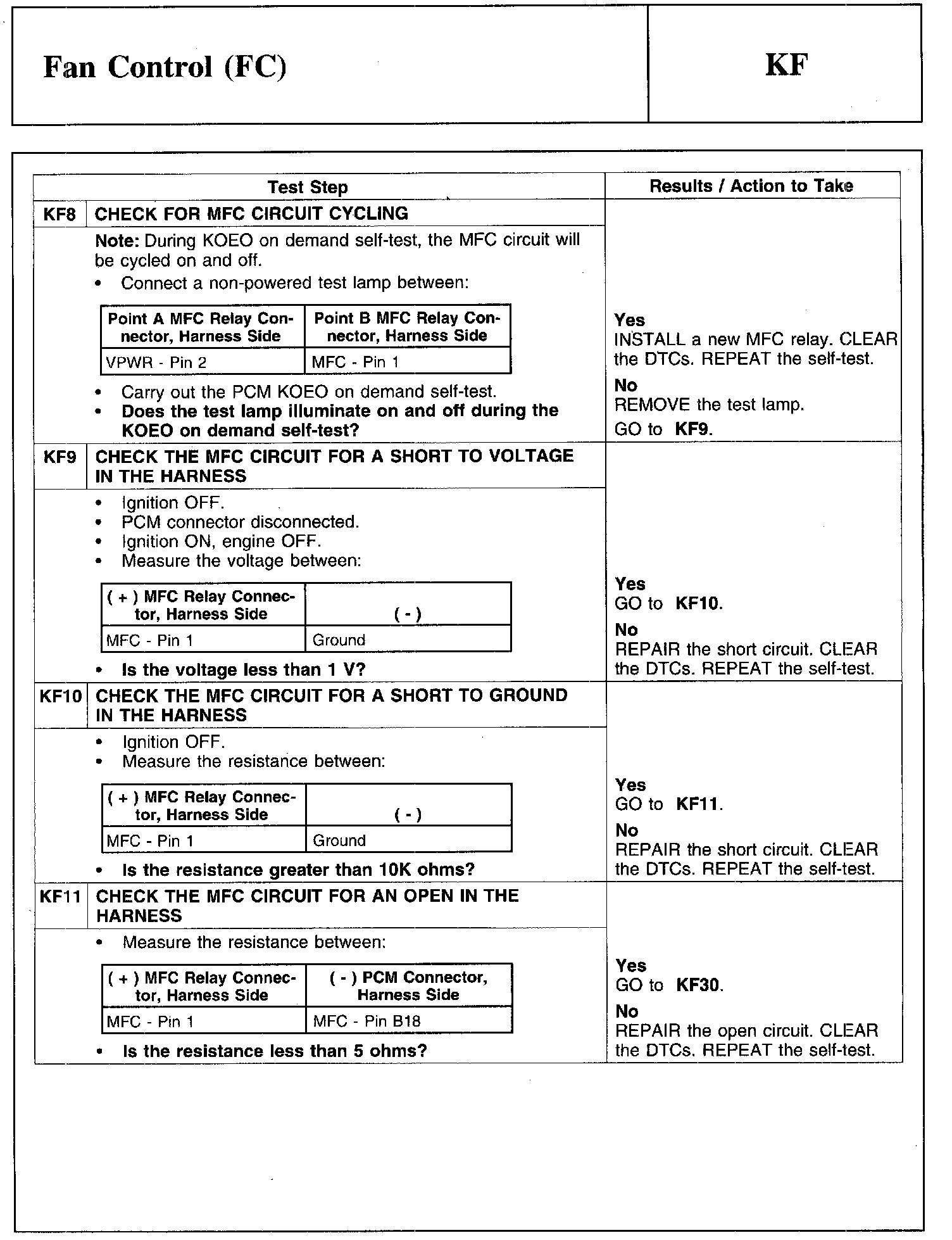

KF8-KF11:

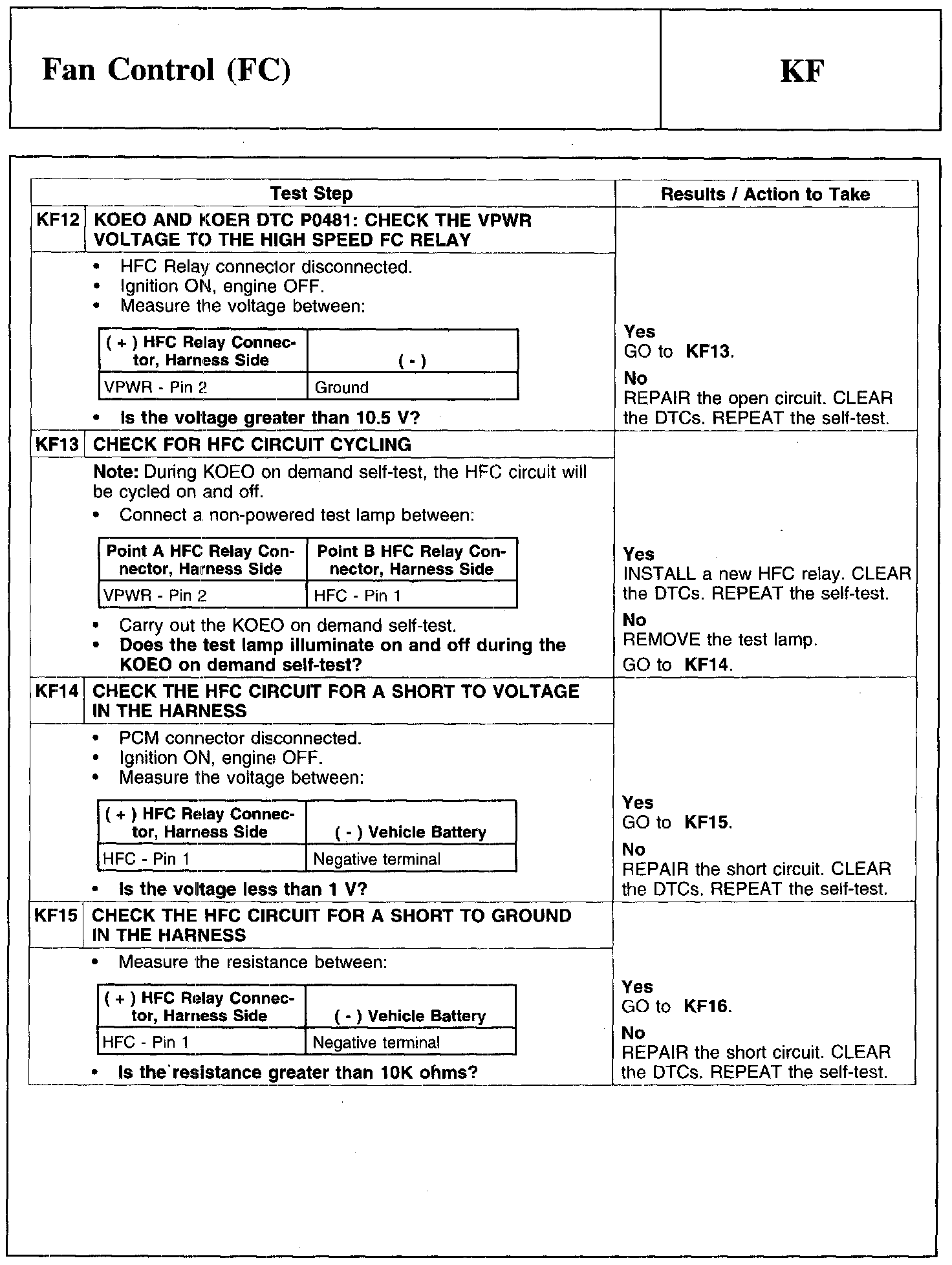

KF12-KF15:

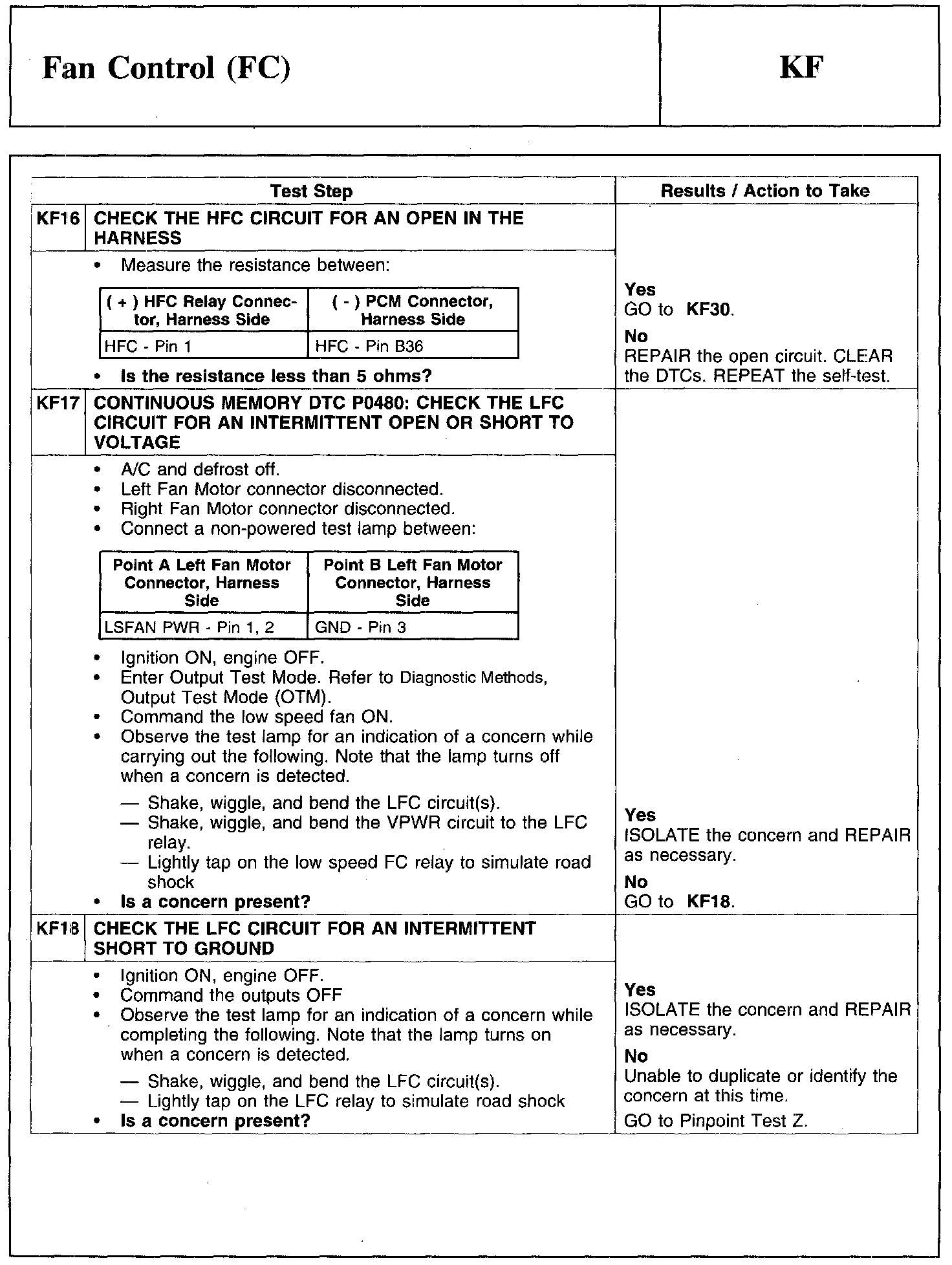

KF16-KF18:

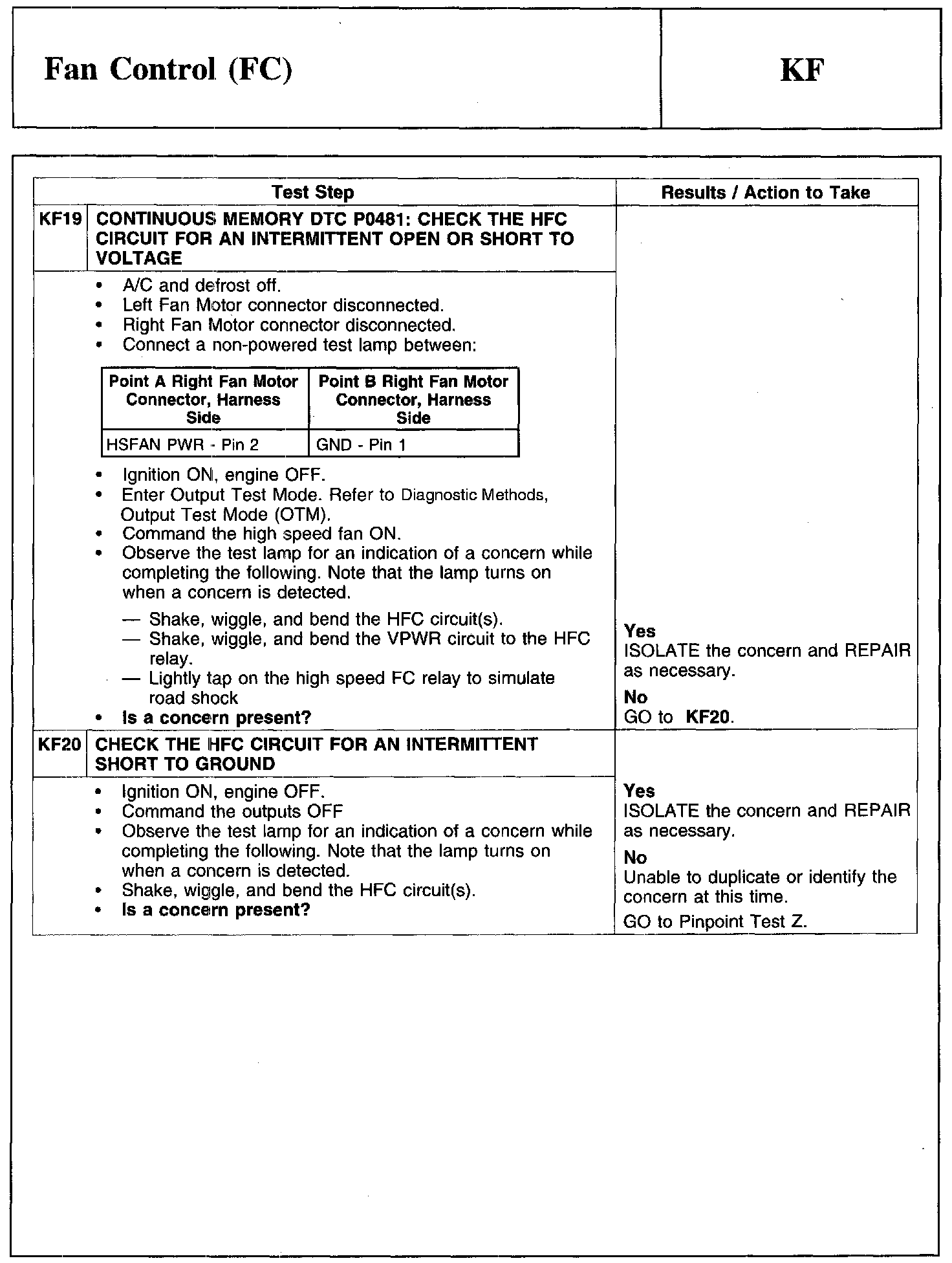

KF19-KF20:

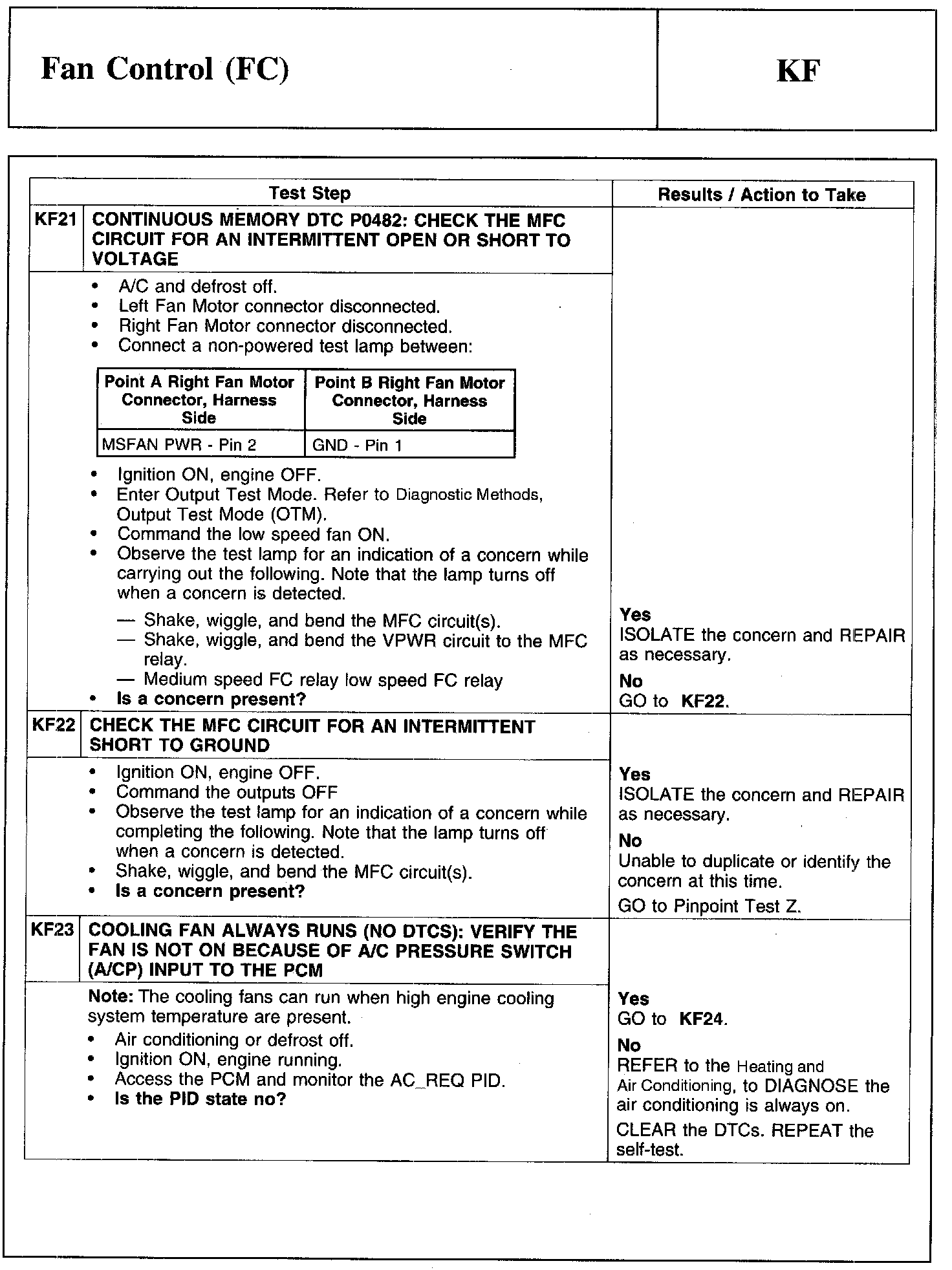

KF21-KF23:

KF24-KF27:

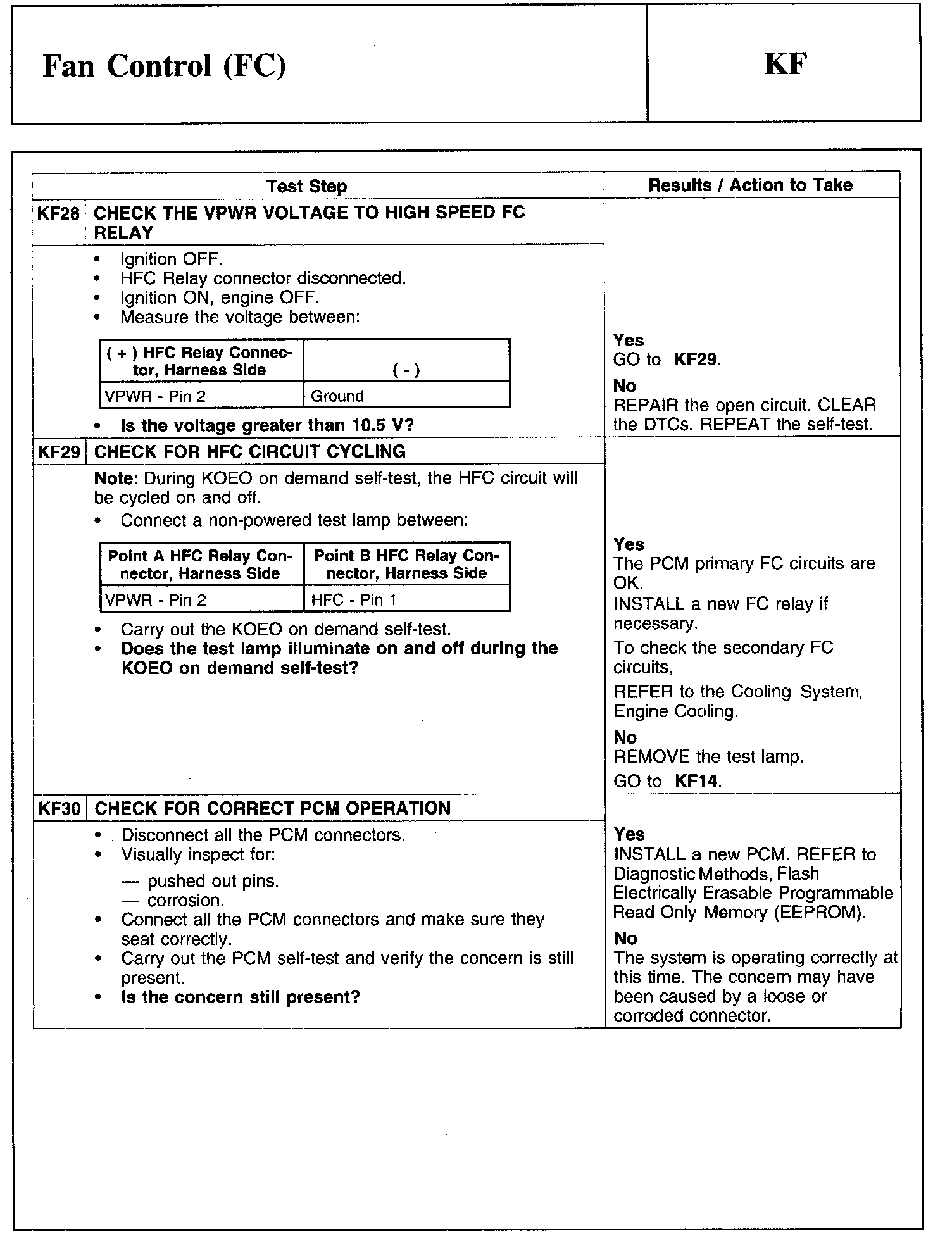

KF28-KF30:
