Ignition switch (14489): Schematic

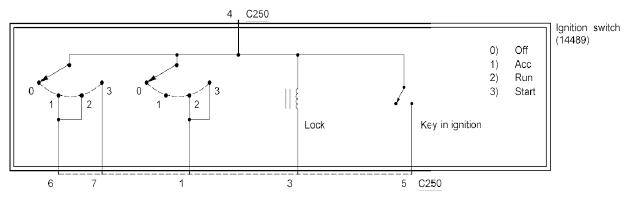

Fig 1: Ignition Switch (14489) Schematic
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
