Pinpoint Test JD: Crankshaft Position (CKP) Sensor: Introduction
WARNING:
CROWN VICTORIA POLICE INTERCEPTOR VEHICLES EQUIPPED WITH FIRE SUPPRESSION SYSTEM, REFER TO APPROPRIATE FIRE SUPPRESSION ARTICLE FOR IMPORTANT SAFETY WARNINGS
. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
This pinpoint test is intended to diagnose the following:
- CKP sensor (6C315)
- harness circuits: CKP(+) and CKP(-)
- powertrain control module (PCM) (12A650)

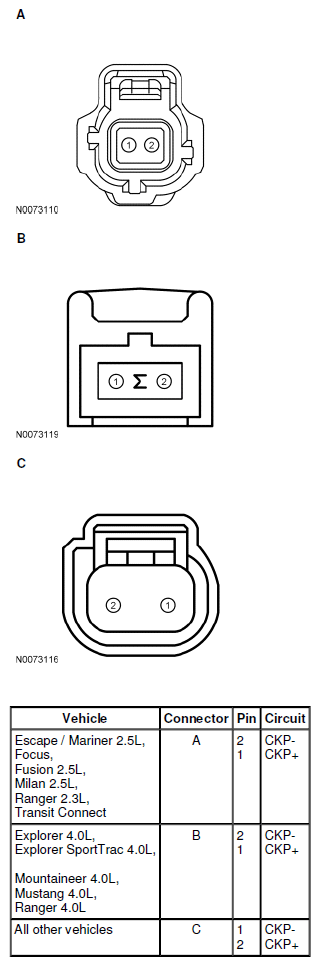

For PCM connector views or reference values, refer to REFERENCE VALUES .
POWERTRAIN CONTROL MODULE (PCM) CONNECTOR PIN REFERENCE CHART
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| E-Series 4.6L, E-Series 5.4L, Expedition, F-150, Focus, Navigator, Transit Connect |
190-Pin | E58 E42 |
CKP+ CKP- |
| Edge, Flex 4V 3.5L, MKS 3.7L, MKT 3.7L, MKX, Taurus 4V 3.5L |
190-Pin | E47 E46 |
CKP+ CKP- |
| Escape/Mariner, Flex GTDI 3.5L, Fusion 3.0L, Fusion 2.5L, Milan, MKS 3.5L, MKT 3.5L, Taurus GTDI 3.5L |
190-Pin | E62 E63 |
CKP+ CKP- |
| Fusion 3.5L, MKZ |
140 Pin | E47 E46 |
CKP+ CKP- |
| All other vehicles | 170 Pin | E47 E46 |
CKP+ CKP- |
