Final Drive Component Exploded View

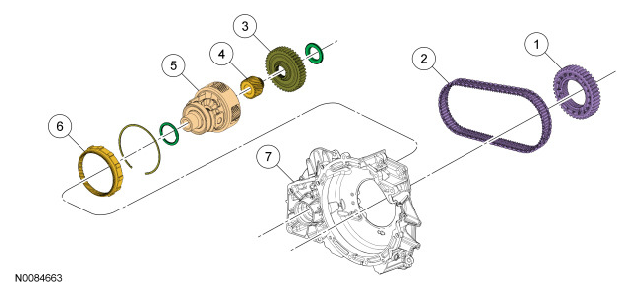

Fig 1: Exploded View Of Final Drive
G06376514Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 7G132 Drive chain drive sprocket
2 7G249 Drive chain
3 7G132 Drive chain driven sprocket
4 7F342 Final drive planetary sun gear
5 7F465 Differential assembly
6 7F343 Final drive planetary ring gear
7 7975 Torque converter housing
