Planetary Gearset Exploded View

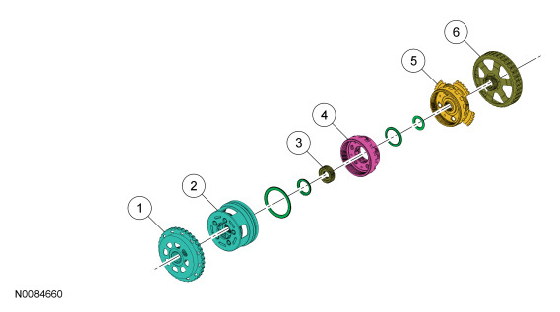

Fig 1: Exploded View Of Planetary Gearset
G06376508Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 7A019 Front planetary sun gear and shell assembly
2 7D491 Front planetary carrier/rear planetary ring gear assembly
3 7D063 Gear - center planetary sun
4 7D491 Center planetary carrier/front ring gear assembly
5 7D491 Rear planetary carrier/center ring gear assembly
6 7A019 Rear planetary sun gear and shell assembly
