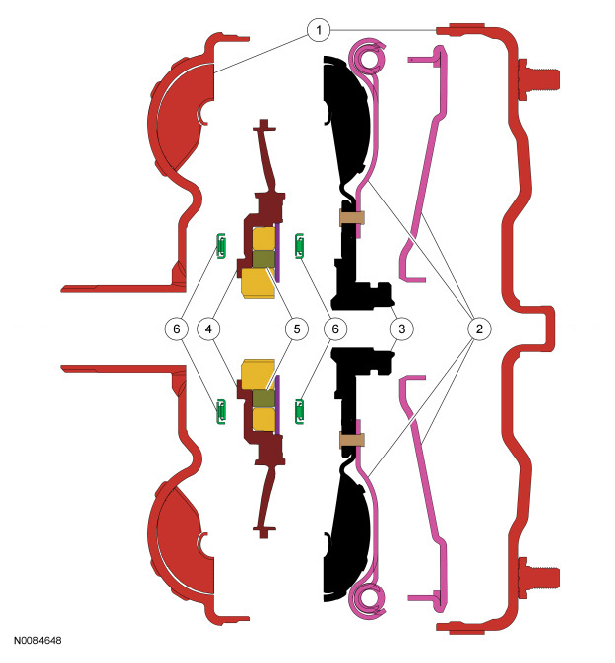

Torque Converter Internal Component Exploded View

Fig 1: Identifying Torque Converter Internal Components

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Description
1	Impeller and cover assembly
2	Torque Converter Clutch (TCC) and damper assembly
3	Turbine
4	Reactor
5	One-Way Clutch (OWC)
6	Thrust bearings
