Transaxle Support Insulator - Lower, Front: Notes

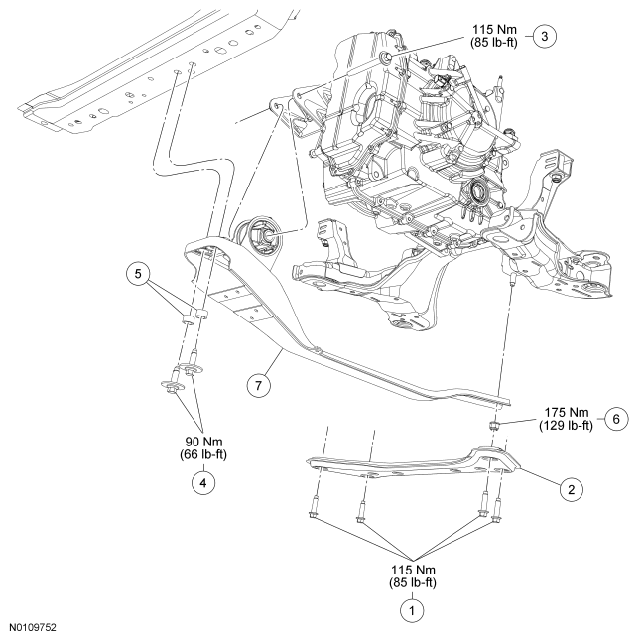

Fig 1: Transaxle Support Insulator Replacement Components - Lower, Front With Torque Specifications

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	W500644	Rear cross brace bolts
2	-	Cross brace
3	W711268	Lower front insulator through bolt
4	W713325	Cross brace bolts
5	6B095	Lower front insulator-to-core support spacers
6	W710553-S440	Cross brace nut
7	6P094	Engine support cross brace and insulator assembly
