Window control switch, passenger side (14489): Schematic

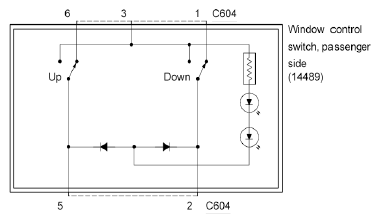

Fig 1: Window Control Switch, Passenger Side (14489) Schematic
G06287410Courtesy of FORD MOTOR CO.
