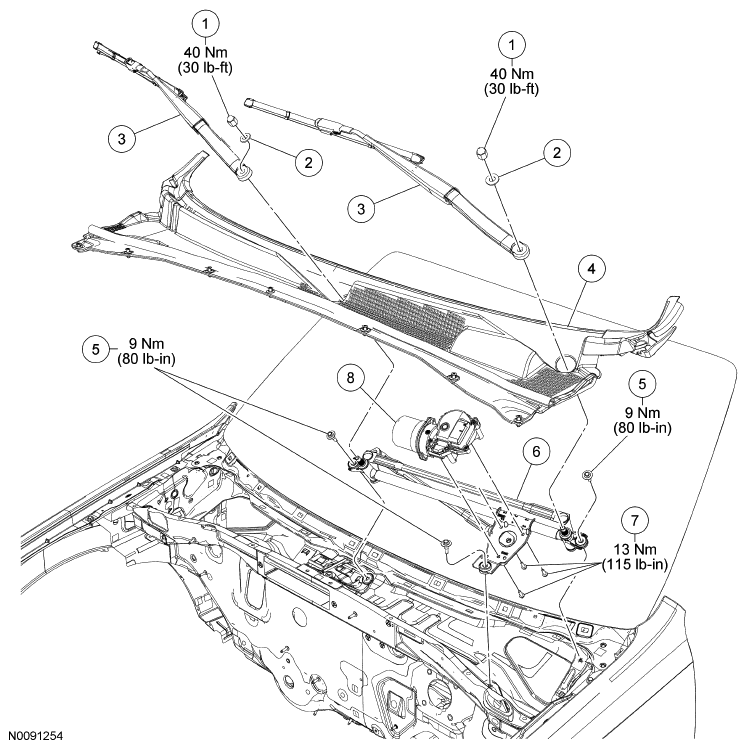

Wiper and Washer System - Exploded View, Front
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W710827 | Windshield wiper pivot arm nuts (2 required) |
| 2 | - | Windshield wiper pivot arm washers (part of W710827) (2 required) |
| 3 | 17526 LH/17527 RH | Windshield wiper pivot arm |
| 3 | 17528 | Windshield wiper blade |
| 4 | 02222 | Cowl panel grille |
| 5 | W704788 | Windshield wiper mounting arm and pivot shaft assembly bolts (3 required) |
| 6 | 17566 | Windshield wiper mounting arm and pivot shaft assembly |
| 7 | - | Wiper motor bolts (part of 17508) (3 required) |
| 8 | 17508 | Wiper motor |
- For additional information, refer to the appropriate procedure(s).
