Special Tool(s)
SPECIAL TOOL DESCRIPTION CHART
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |

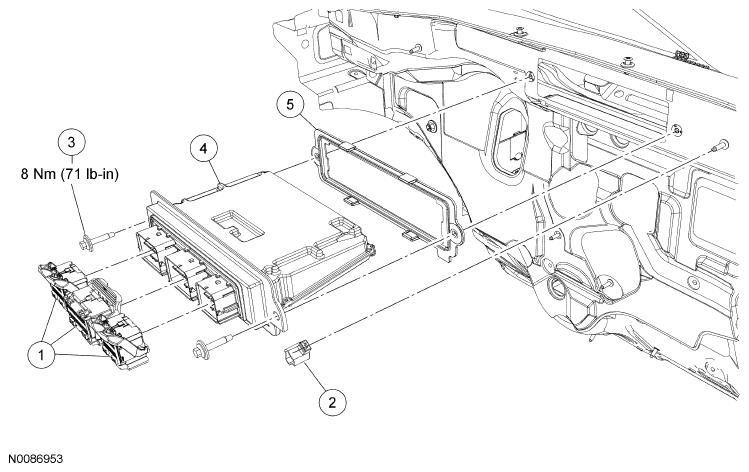

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | PCM electrical connectors (part of 12C508) |
| 2 | - | Wire harness retainer (part of 12C508) |
| 3 | W806925 | PCM bolt (2 required) |
| 4 | 12A650 | PCM |
| 5 | 12A696 | PCM cowl seal |
