Pinpoint Test DV: Throttle Body Assembly Electronic Throttle Control (ETC): Introduction

WARNING: SUBSTANTIAL OPENING AND CLOSING TORQUE IS APPLIED BY THIS SYSTEM. TO PREVENT INJURY, BE CAREFUL TO KEEP FINGERS AWAY FROM THROTTLE MECHANISM WHEN ACTUATED. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

NOTE: The voltage of the TP2 circuit and PID reaches a limit of approximately 4.5 volts at approximately 45 degrees of throttle angle.

This pinpoint test is intended to diagnose the following:

electronic throttle body (ETB) (9F991)
electronic throttle body throttle position sensor (ETBTPS) (9E928)
harness circuits: ETCRTN, ETCREF, TPS1-NS, TPS2-PS, TACM+, and TACM-
powertrain control module (PCM) (12A650)

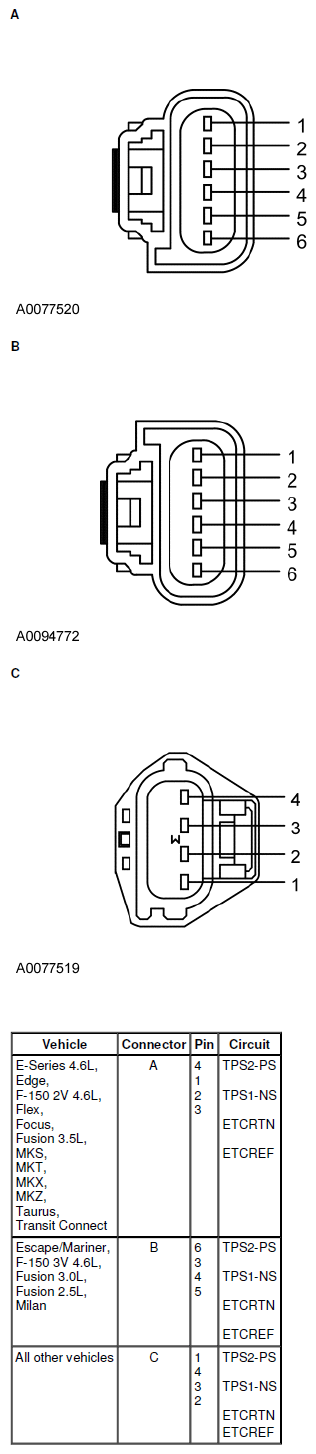

Fig 1: Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector

Courtesy of FORD MOTOR CO.

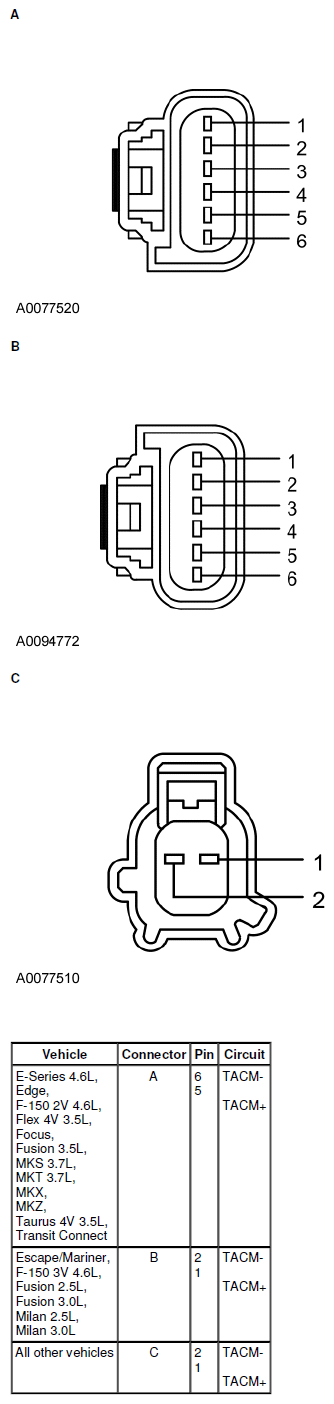

Fig 2: Electronic Throttle Body Throttle Actuator Control Motor (ETBTACM) Connector

Courtesy of FORD MOTOR CO.

For PCM connector views or reference values, refer to REFERENCE VALUES .

POWERTRAIN CONTROL MODULE (PCM) CONNECTOR PIN REFERENCE CHART

Vehicle	Connector	Pin	Circuit
E-Series 4.6L, E-Series 5.4L	190-Pin	E59 E60 B67 B22 E51 E34 E45 E44	ETCREF ETCRTN VPWR PWRGND TACM- TACM+ TPS2-PS TPS1-NS
E-Series 6.8L, F-Series Super Duty	170 Pin	E66 B18, B6, E59 B35 B47 E51 E34 E60 E61	ETCREF ETCRTN VPWR PWRGND TACM- TACM+ TPS2-PS TPS1-NS
Edge, Flex 4V 3.5L, MKS 3.7L, MKT 3.7L, MKX	190-Pin	E66 B59, B65, E59 B51 B67 E51 E34 E60 E61	ETCREF ETCRTN VPWR PWRGND TACM- TACM+ TPS2-PS TPS1-NS
Escape/Mariner, Fusion 3.0L, Fusion 2.5L, Milan	190-Pin	E57 E61 B67 B69 E51 E34 E58 E41	ETCREF ETCRTN VPWR PWRGND TACM- TACM+ TPS2-PS TPS1-NS
Expedition, F-150, Focus, Navigator, Transit Connect	190-Pin	E59 E60 B67 B69 E51 E34 E45 E44	ETCREF ETCRTN VPWR PWRGND TACM- TACM+ TPS2-PS TPS1-NS
Flex GTDI 3.5L, MKS 3.5L, MKT 3.5L, Taurus GTDI 3.5L	190-Pin	E57 E61 B35 B67 E51 E34 E58 E41	ETCREF ETCRTN VPWR PWRGND TACM- TACM+ TPS2-PS TPS1-NS
Fusion 3.5L, MKZ	140 Pin	E66 B59, B60, E59 B51 B67 E51 E34 E60 E61	ETCREF ETCRTN VPWR PWRGND TACM- TACM+ TPS2-PS TPS1-NS
Mustang	170 Pin	E66 B41, B6, E59 B35 B47 E51 E34 E60 E61	ETCREF ETCRTN VPWR PWRGND TACM- TACM+ TPS2-PS TPS1-NS
Taurus 4V 3.5L	190-Pin	B21, B28, E66 B59, B65, E59 B51 B67 E51 E34 E60 E61	ETCREF ETCRTN VPWR PWRGND TACM- TACM+ TPS2-PS TPS1-NS
All other vehicles	170 Pin	E66 B43, B6, E59 B35 B47 E51 E34 E60 E61	ETCREF ETCRTN VPWR PWRGND TACM- TACM+ TPS2-PS TPS1-NS
