Pinpoint Test KA: Fuel Pump (FP) Relay: Introduction

This pinpoint test is intended to diagnose the following:

• FP relay (9345)
• inertia fuel shutoff (IFS) switch (9341)
• harness circuits: B+, VPWR, FP, GND, FPM, and FPPWR
• powertrain control module (PCM) (12A650)

The VPWR and FP circuits may be reversed in the harness connector. Refer to the appropriate SYSTEM WIRING DIAGRAMS article for schematic and connector information.

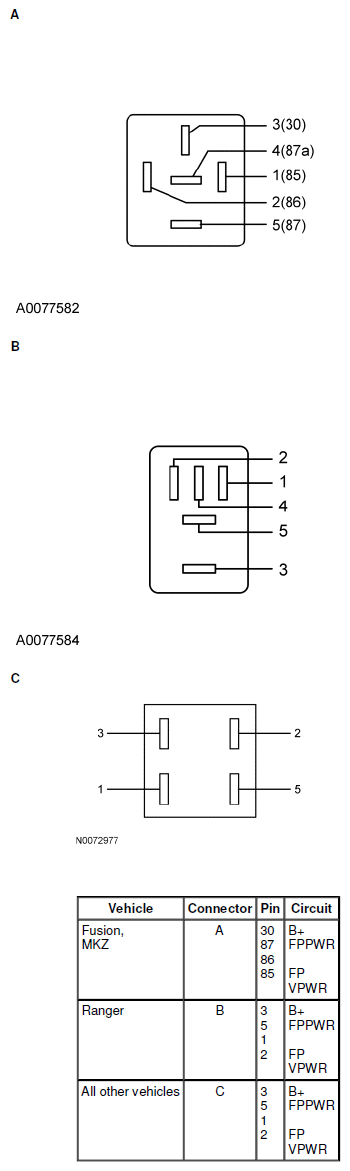

Fig 1: Fuel Pump (FP) Relay Connector

Courtesy of FORD MOTOR CO.

Fig 2: Inertia Fuel Shutoff (IFS) Switch Connector

Courtesy of FORD MOTOR CO.

For PCM connector views or reference values, refer to REFERENCE VALUES .
