Pinpoint Test KD: Electric Exhaust Gas Recirculation (EEGR) System: Introduction

This pinpoint test is intended to diagnose the following:

• EEGR system
• EEGR stepper motor (9D475)
• harness circuits: EGRMC1, EGRMC2, EGRMC3, EGRMC4 and VPWR
• powertrain control module (PCM) (12A650)

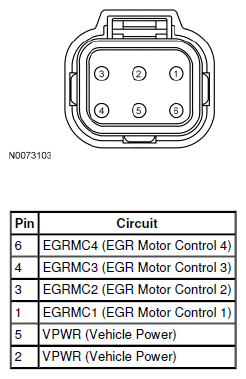

Fig 1: Electric Exhaust Gas Recirculation (EEGR) Assembly Connector

Courtesy of FORD MOTOR CO.

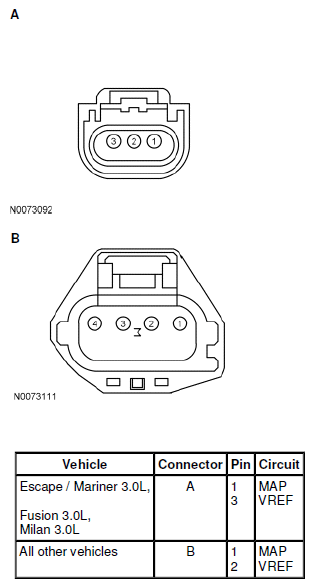

Fig 2: Manifold Absolute Pressure (MAP) Sensor Connector

Courtesy of FORD MOTOR CO.

For PCM connector views or reference values, refer to REFERENCE VALUES .
