Pinpoint Test KC: Fuel Pump Control Module: Introduction

This pinpoint test is intended to diagnose the following:

• fuel pump control module (9D412)
• fuel pump control module relay
• inertia fuel shutoff (IFS) switch (9341)
• harness circuits: B+, GND, FPC, FPM, FPPWR, FPRTN, VPWR, VPWR Fuel, and PWRGND
• powertrain control module (PCM) (12A650)

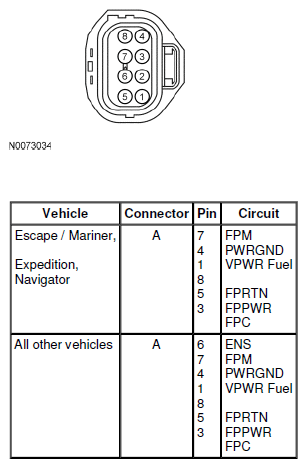

Fig 1: Fuel Pump Control Module Connector

Courtesy of FORD MOTOR CO.

Refer to the appropriate SYSTEM WIRING DIAGRAMS article for schematic and connector information.

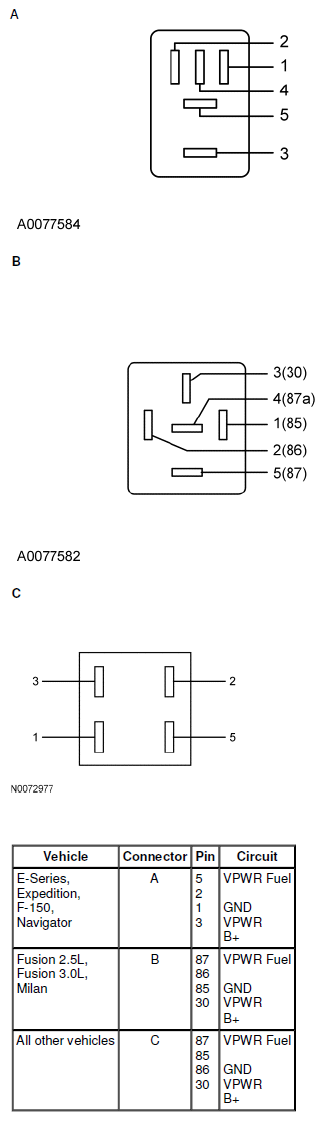

Fig 2: Fuel Pump Control Module Relay Connector

Courtesy of FORD MOTOR CO.

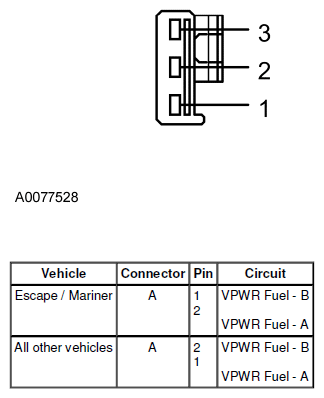

Fig 3: Inertia Fuel Shutoff (IFS) Switch Connector

Courtesy of FORD MOTOR CO.

Fig 4: Restraints Control Module (RCM) Connector

Courtesy of FORD MOTOR CO.

For PCM connector views or reference values, refer to REFERENCE VALUES .
