Accessory Protocol Interface Module Connector End View (C3338)

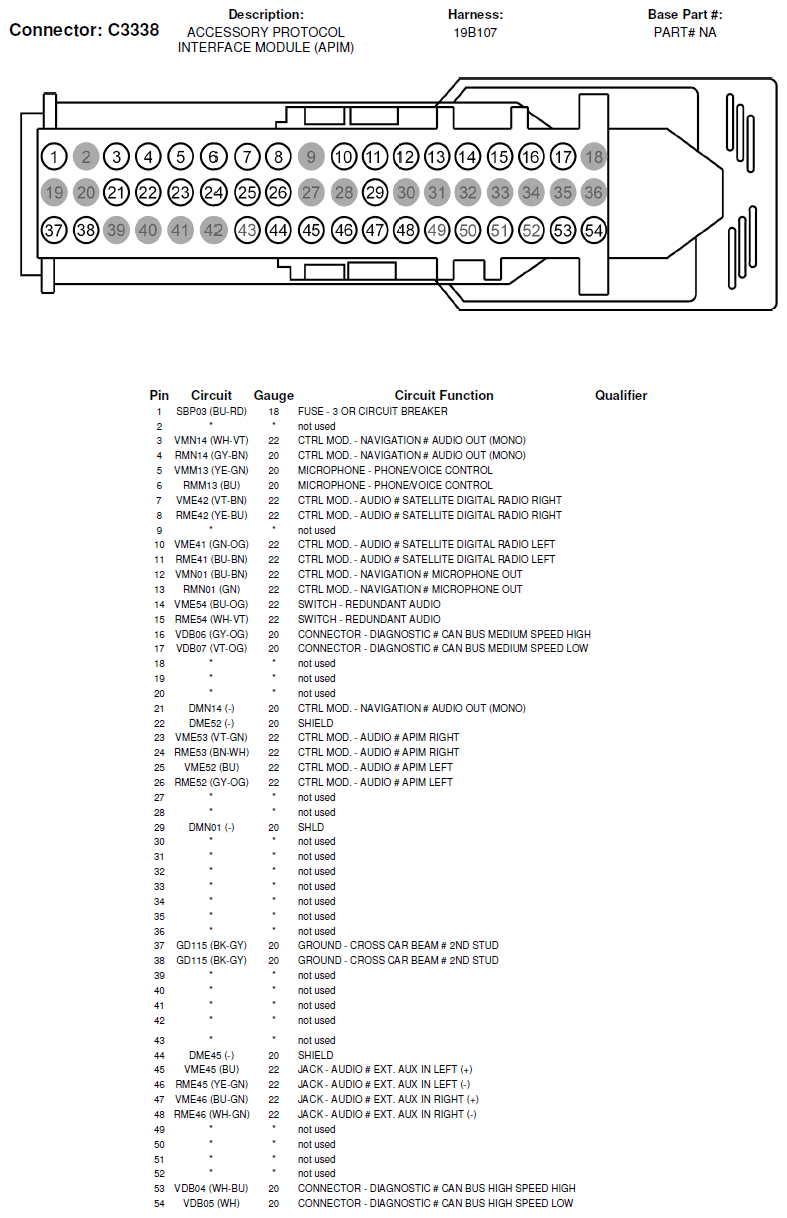

Fig 1: Accessory Protocol Interface Module Connector End View (C3338)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
