Global Positioning System Module Connector End View (C2300)

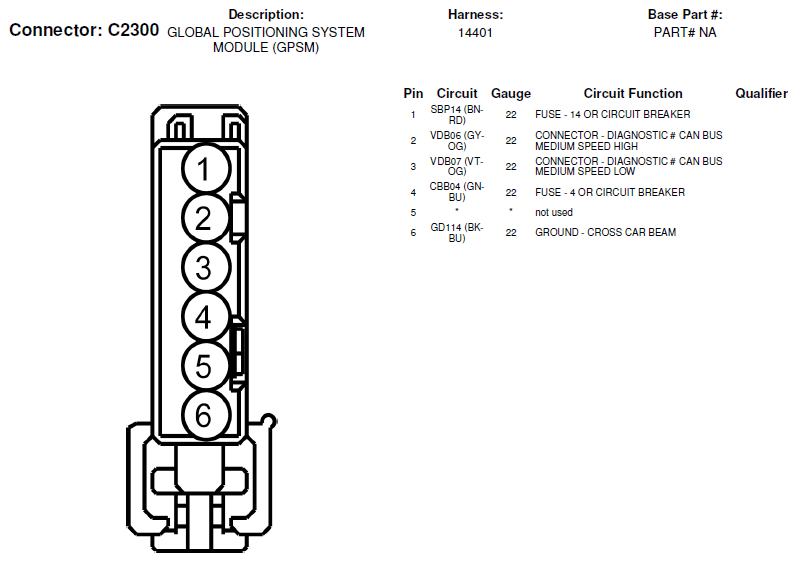

Fig 1: Global Positioning System Module Connector End View (C2300)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
