Escape Base, 2.5 7, AWD, Standard
>>
Repair and Diagnosis (Single Page)
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Connector End Views - (Except Hybrid)
>>
Connector End Views
>>
Powertrain Control Module Connector End View (C175B)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Powertrain Control Module Connector End View (C175B)

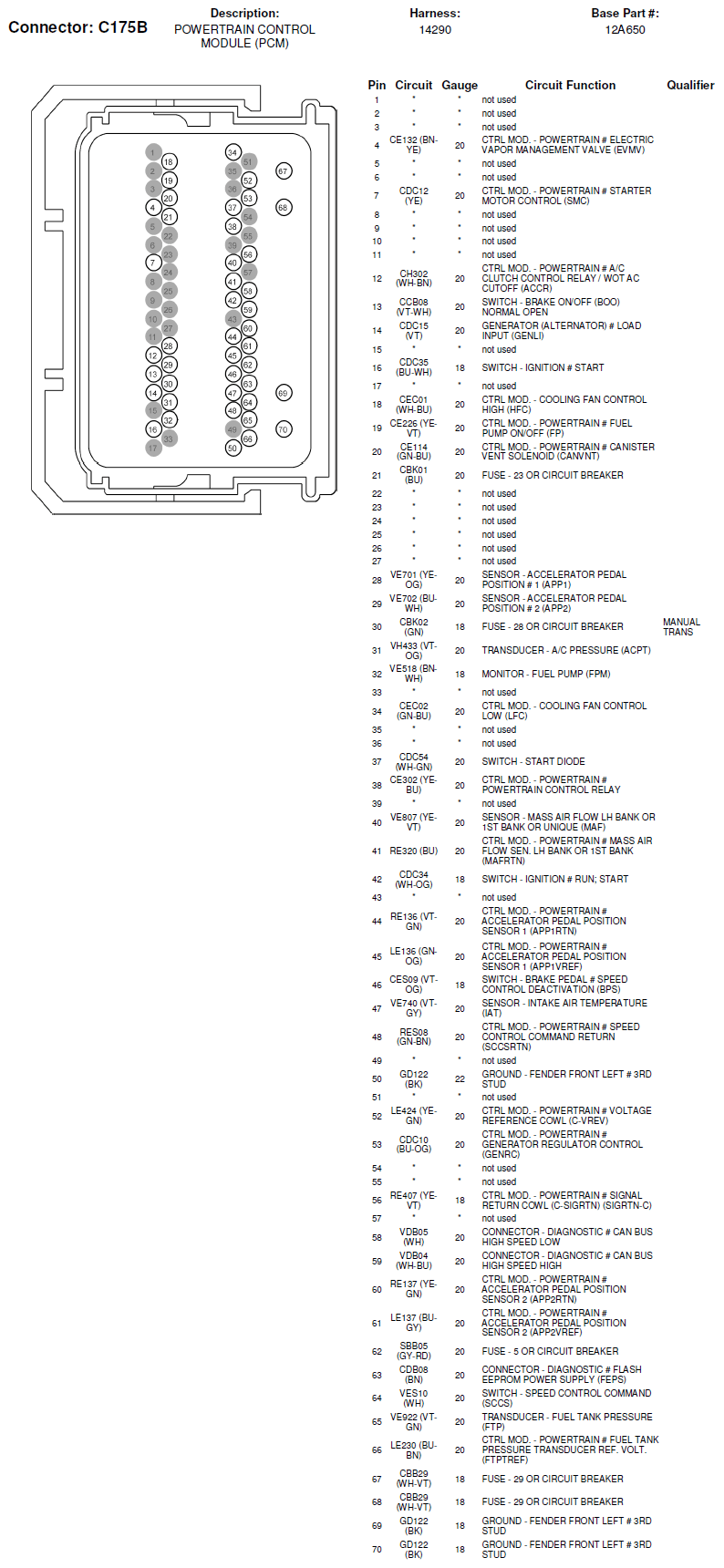

Fig 1: Powertrain Control Module Connector End View (C175B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
