Restraints Control Module Connector End View (C2041A)

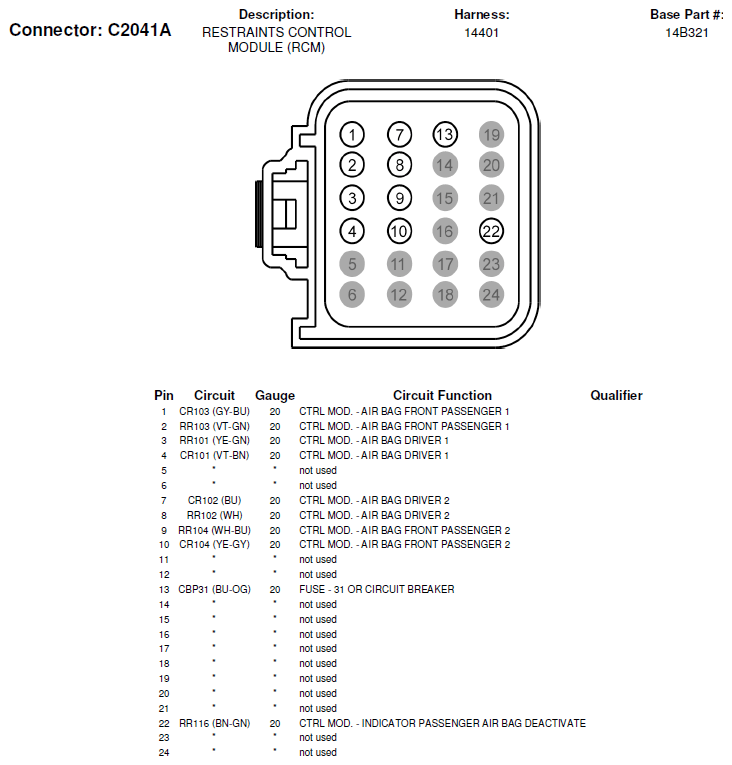

Fig 1: Restraints Control Module Connector End View (C2041A)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
