Satellite Digital Audio Receiver System Module Connector End View (C3290)

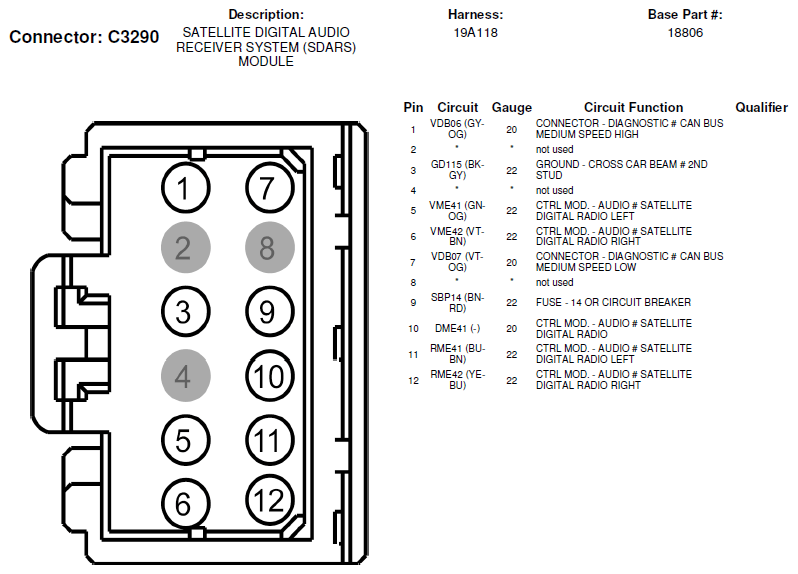

Fig 1: Satellite Digital Audio Receiver System Module Connector End View (C3290)
G06287686Courtesy of FORD MOTOR CO.
