Power Transfer Unit (PTU)

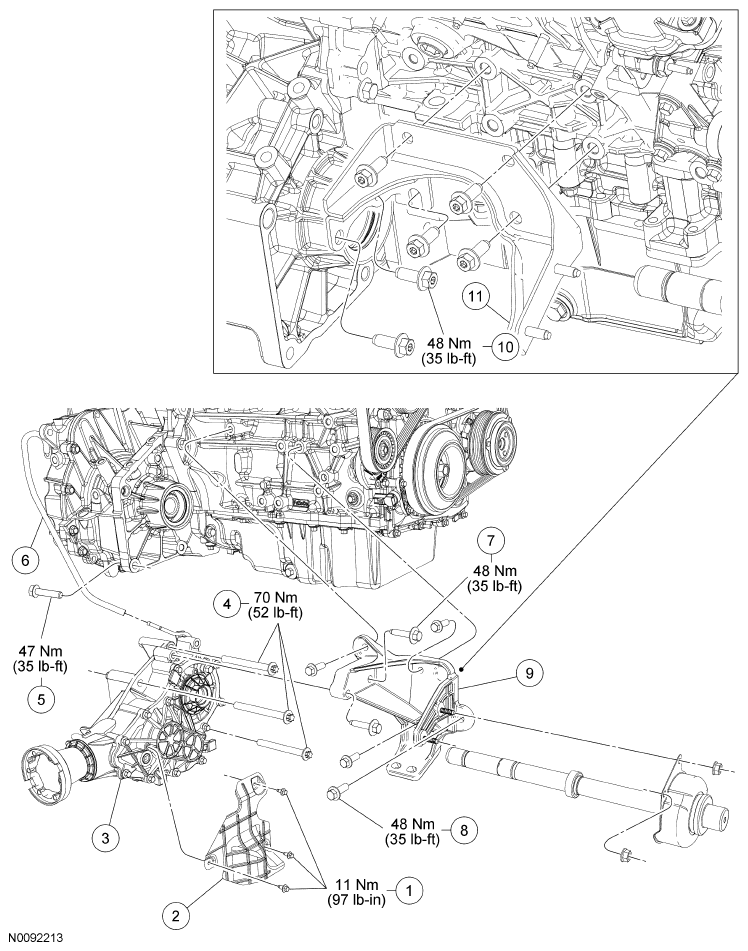

Fig 1: Power Transfer Unit Components With Torque Specifications

Courtesy of FORD MOTOR CO.

All vehicles

NOTE: If necessary, install a new RH differential fluid seal. For additional information, refer to HALFSHAFT SEAL -- RH, ALL WHEEL DRIVE (AWD) or IN-VEHICLE REPAIR .
1. Position the Power Transfer Unit (PTU) to the transaxle.
2. Install the 3 PTU  -to-transaxle bolts.
   • Tighten to 70 Nm (52 lb-ft).
3. Install the PTU  -to-transaxle bolt (M10).
   • Tighten to 47 Nm (35 lb-ft).
4. Connect the PTU  vent tube.
5. Install the PTU  -to-engine bracket and the 6 bracket bolts.
   • Tighten to 48 Nm (35 lb-ft).

   Hybrid vehicles

6. Install the catalytic converter bracket and bolts.
   • Tighten to 25 Nm (18 lb-ft).

   Vehicles equipped with 2.5L and hybrid

7. Install the catalytic converter bracket nuts.
   • Tighten to 36 Nm (27 lb-ft).

   All vehicles

8. Install the PTU  heat shield and the 3 PTU  heat shield bolts.
   • Tighten to 11 Nm (97 lb-in).

   Vehicles equipped with 3.0L

9. Install the catalytic converter - 3.0L RH manifold. For additional information, refer to CATALYTIC CONVERTER -- 3.0L RH .

   All vehicles

10. Install the crossmember brace and the 4 bolts.
    • Tighten to 40 Nm (30 lb-ft).
      Fig 2: Identifying Crossmember Brace And Bolts

      Courtesy of FORD MOTOR CO.
11. Install the driveshaft. For additional information, refer to DRIVESHAFT .
12. Install the front RH intermediate shaft. For additional information, refer to FRONT DRIVE HALFSHAFTS .
13. Install the exhaust as required. For additional information, refer to EXHAUST SYSTEM .
14. Fill the PTU  . For additional information, refer to POWER TRANSFER UNIT (PTU) DRAINING AND FILLING .
15. Check the transaxle fluid level. For additional information, refer to PRELIMINARY INSPECTION or DIAGNOSIS AND TESTING .
