Line Pressure Control (LPC) Inversely Proportional Variable Force Solenoid (VFS)

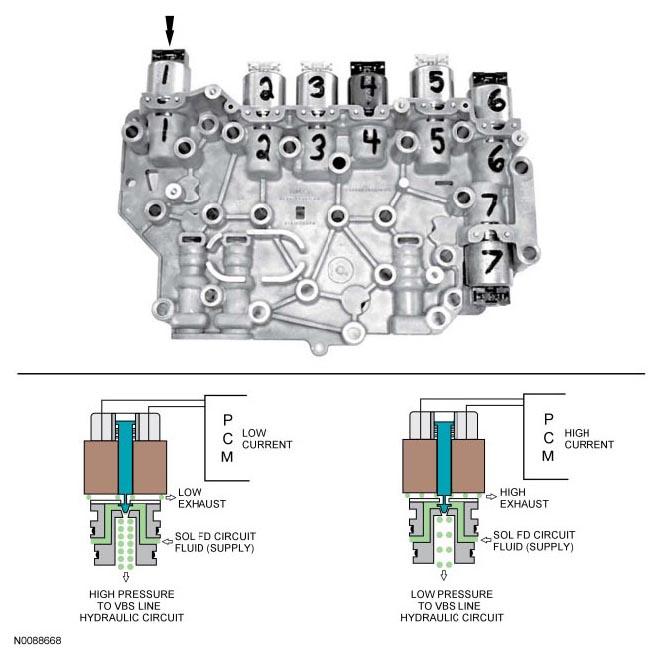

Fig 1: Locating Line Pressure Control (LPC) Inversely Proportional Variable Force Solenoid (VFS)
G06376573Courtesy of FORD MOTOR CO.
