Front Controls Interface Module Connector End View - C2402

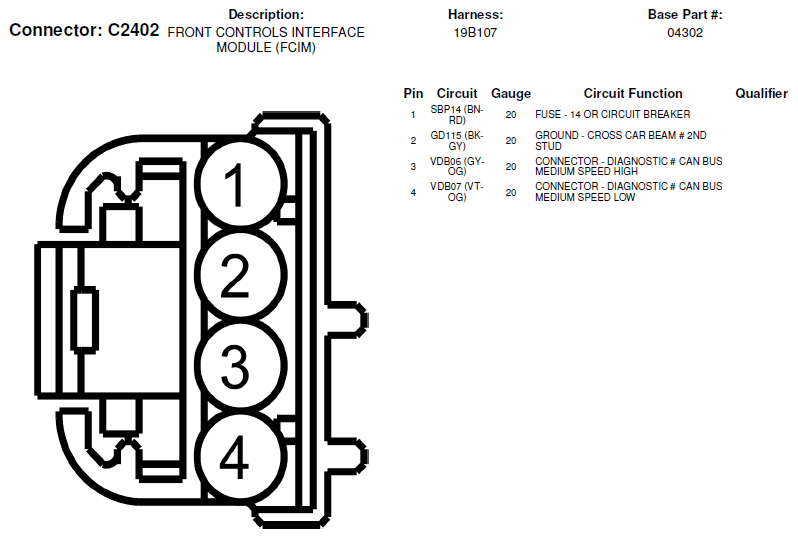

Fig 1: Front Controls Interface Module Connector End View (C2402)
G06303800Courtesy of FORD MOTOR CO.
