Multifunction Switch, Wiper/Washer Portion - Front: Schematic

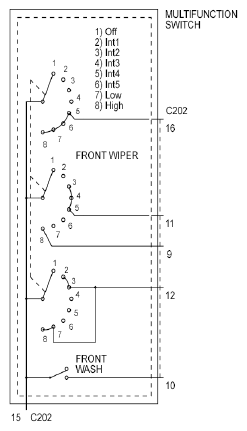

Fig 1: Multifunction Switch, Wiper/Washer Portion - Front Schematic
G06303854Courtesy of FORD MOTOR CO.
Fig 2: Multifunction Switch, Wiper/Washer Portion - Front Terminal Identification
G06303855Courtesy of FORD MOTOR CO.
