Powertrain Control Module (PCM): Notes
WARNING: This page is about a different car, the 2009 Mercury Mountaineer, 2009 Ford Explorer Sport Trac, and 2009 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Exploded View Of Powertrain Control Module (PCM) With Torque Specifications - A/C Tube Brackets
| Item | Part Number | Description |
|---|---|---|
| 1 | 2C204 | RH front wheel speed sensor electrical connector |
| 2 | N621905 | A/C tube bracket nut |
| 3 | - | A/C tube bracket (part of 19N651) |
| 4 | N705760 | A/C tube bracket nut (4.6L [3V] only) |
| 5 | - | A/C tube bracket (part of 19N617) (4.6L [3V] only) |

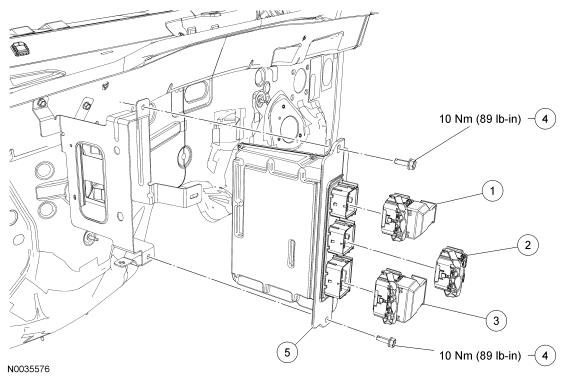

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | PCM electrical connector (part of 12B637) |
| 2 | 14A464 | PCM electrical connector (part of 14398) |
| 3 | 14A464 | PCM electrical connector (part of 12B637) |
| 4 | N806972 | PCM bolts (2 required) |
| 5 | 12A651 | PCM |
