Climate Control Assembly: Notes

WARNING: This page is about a different car, the 2009 Mercury Mountaineer, 2009 Ford Explorer Sport Trac, and 2009 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

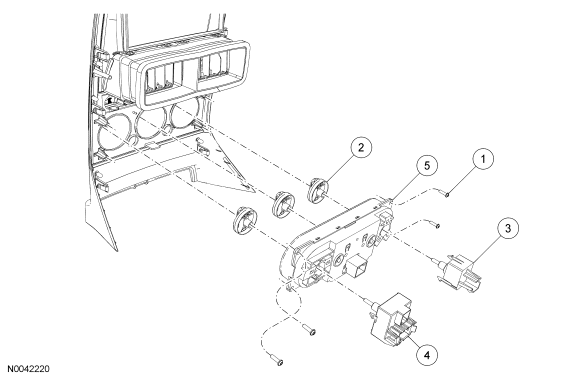

Fig 1: Exploded View Of Climate Control Assembly

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W701679	Climate control assembly screw (4 required)
2	18519	Climate control knob (3 required)
3	19986	Blower motor switch
4	19B888	Function selector switch
5	19980	Climate control assembly
