Anti-Lock Brake System Module Connector - C155

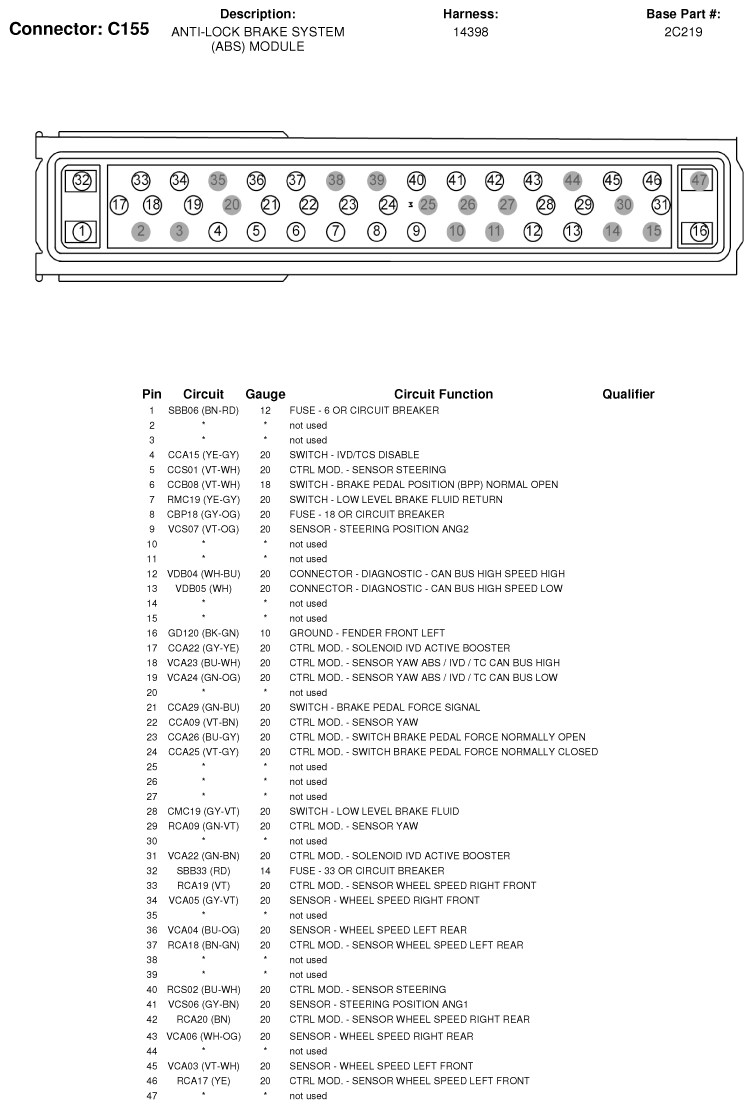

Fig 1: Anti-Lock Brake System Module Connector End View (C155)
G06304388Courtesy of FORD MOTOR CO.
