Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Battery Junction Box (BJB)

G00458768

Courtesy of FORD MOTOR CO.

Fig 2: Smart Junction Box (1 Of 2)

G00419982

Courtesy of FORD MOTOR CO.

Fig 3: Smart Junction Box (2 Of 2)

G00419983

Courtesy of FORD MOTOR CO.

Fig 4: Engine Compartment (4.0L)

G00475588

Courtesy of FORD MOTOR CO.

Fig 5: Left Side Of Engine (4.0L)

G00458775

Courtesy of FORD MOTOR CO.

Fig 6: Right Side Of Engine (4.0L)

G00458776

Courtesy of FORD MOTOR CO.

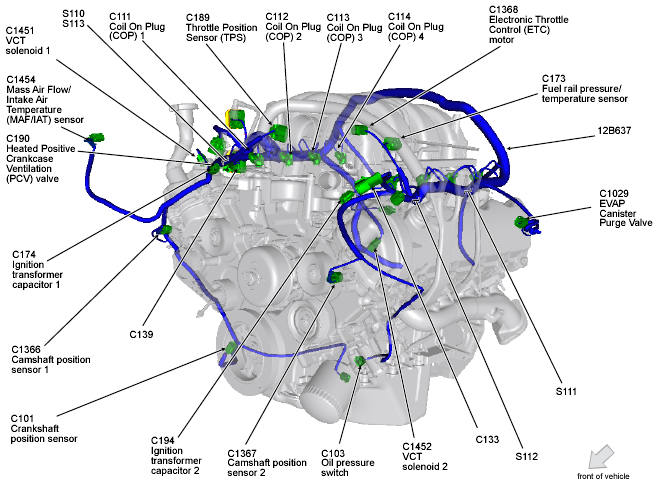

Fig 7: Left Side Of Engine (4.6L)

G00476484

Courtesy of FORD MOTOR CO.

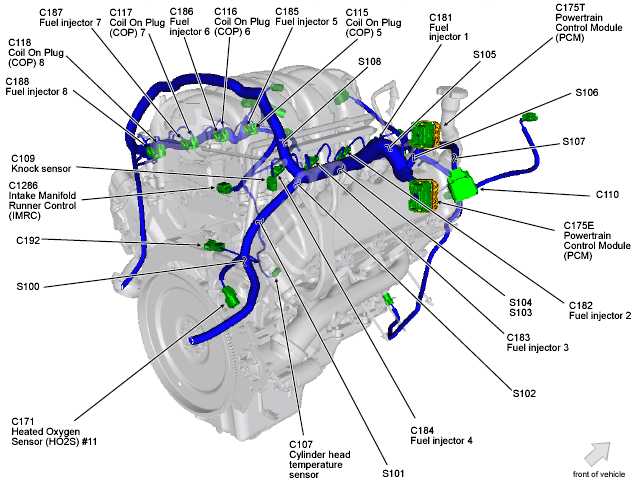

Fig 8: Right Side Of Engine (4.6L)

G00476485

Courtesy of FORD MOTOR CO.

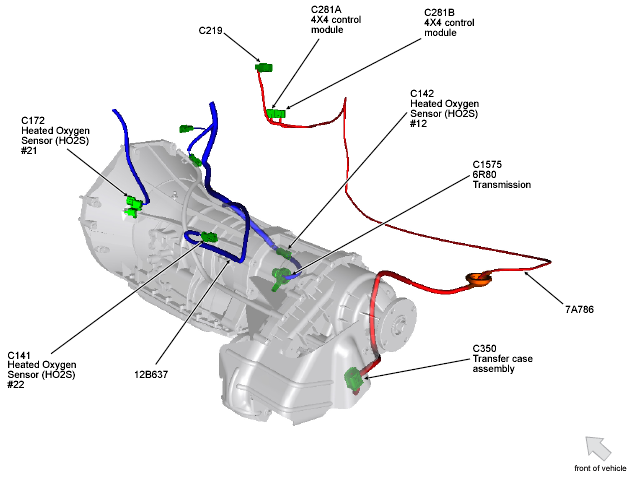

Fig 9: Automatic Transmission (6 Speed)

G00476486

Courtesy of FORD MOTOR CO.

Fig 10: Front Of Dash

G00476488

Courtesy of FORD MOTOR CO.

Fig 11: Rear Of Dash

G00476487

Courtesy of FORD MOTOR CO.

Fig 12: Center Floor Console

G00458785

Courtesy of FORD MOTOR CO.

Fig 13: Right Front Of Passenger Compartment

G00476490

Courtesy of FORD MOTOR CO.

Fig 14: Left Rear Of Passenger Compartment (Except Sport Trac)

G00458789

Courtesy of FORD MOTOR CO.

Fig 15: Right Rear Of Passenger Compartment (Except Sport Trac)

G00476492

Courtesy of FORD MOTOR CO.

Fig 16: Driver's Seat

G00476494

Courtesy of FORD MOTOR CO.

Fig 17: Front Passenger's Seat

G00476495

Courtesy of FORD MOTOR CO.

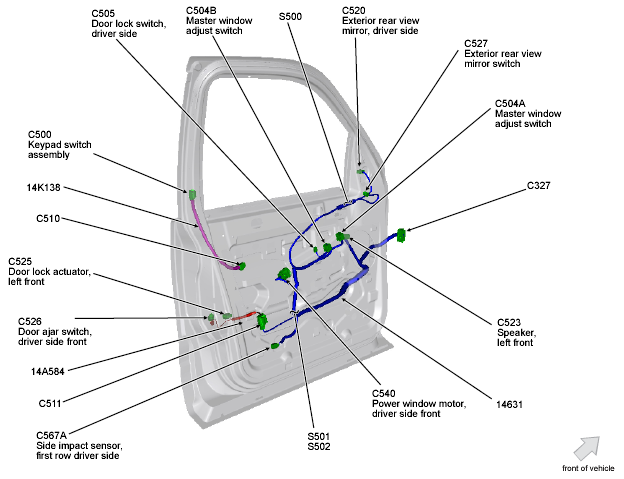

Fig 18: Driver's Door

G00476496

Courtesy of FORD MOTOR CO.

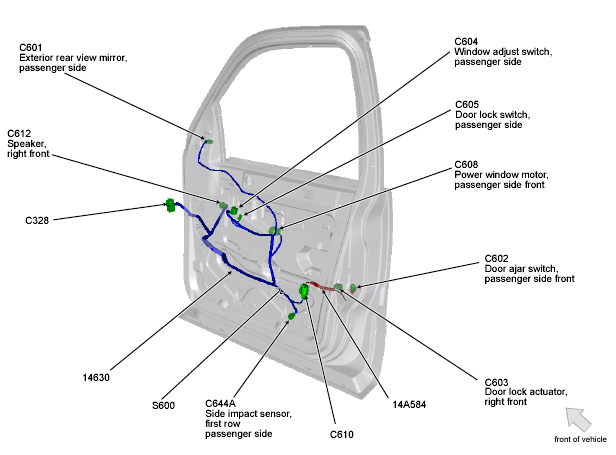

Fig 19: Front Passenger's Door

G00476497

Courtesy of FORD MOTOR CO.

Fig 20: Right Rear Door

G00420006

Courtesy of FORD MOTOR CO.

Fig 21: Left Rear Door

G00420007

Courtesy of FORD MOTOR CO.

Fig 22: Liftgate

G00420008

Courtesy of FORD MOTOR CO.

Fig 23: Roof (Except Sport Trac)

G00476498

Courtesy of FORD MOTOR CO.

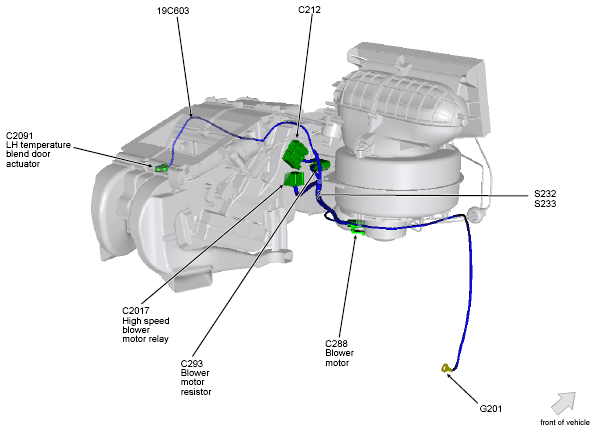

Fig 24: Front Of HVAC Unit (Manual A/C)

G00476500

Courtesy of FORD MOTOR CO.

Fig 25: Front Of HVAC Unit (DEATC)

G00476501

Courtesy of FORD MOTOR CO.

Fig 26: Rear Of Vehicle (Except Sport Trac)

G00458793

Courtesy of FORD MOTOR CO.

Fig 27: Steering Wheel

G00458784

Courtesy of FORD MOTOR CO.

Fig 28: Engine Compartment (4.0L)

G00475587

Courtesy of FORD MOTOR CO.

Fig 29: Engine Compartment (4.6L)

G00476481

Courtesy of FORD MOTOR CO.

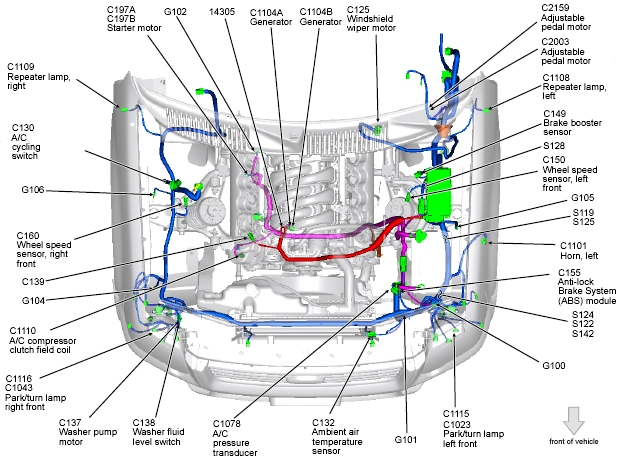

Fig 30: Engine Compartment (4.6L)

G00476482

Courtesy of FORD MOTOR CO.

Fig 31: Automatic Transmission (5 Speed)

G00458779

Courtesy of FORD MOTOR CO.

Fig 32: Steering Column

G00458783

Courtesy of FORD MOTOR CO.

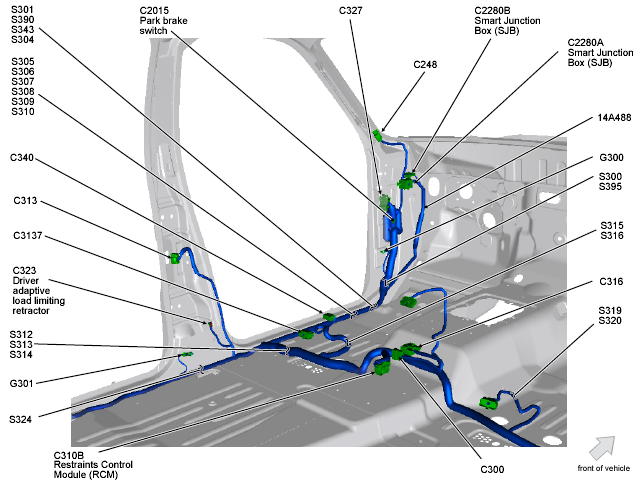

Fig 33: Left Front Of Passenger Compartment

G00476489

Courtesy of FORD MOTOR CO.

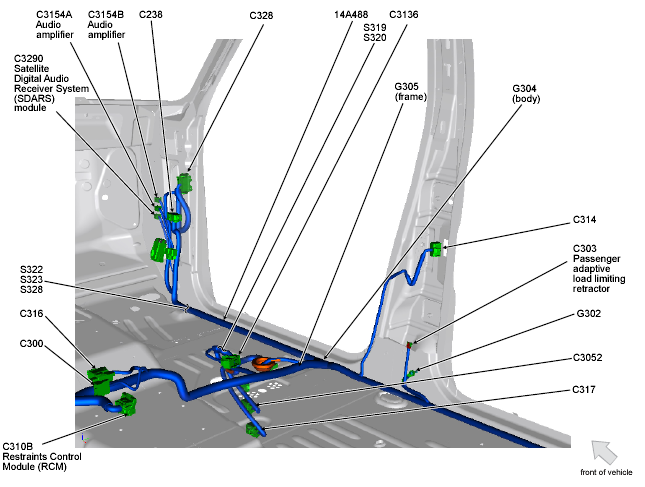

Fig 34: Right Front Of Passenger Compartment

G00476491

Courtesy of FORD MOTOR CO.

Fig 35: Left Rear Of Passenger Compartment (Sport Trac)

G00458791

Courtesy of FORD MOTOR CO.

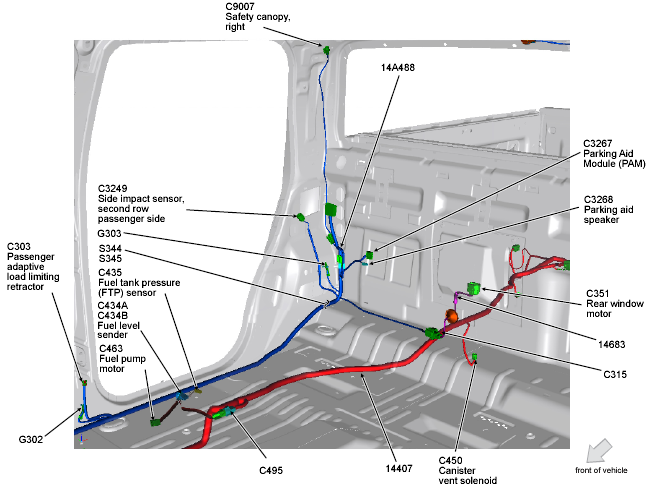

Fig 36: Right Rear Of Passenger Compartment (Sport Trac)

G00476493

Courtesy of FORD MOTOR CO.

Fig 37: Rear Of Vehicle (Sport Trac)

G00458794

Courtesy of FORD MOTOR CO.

Fig 38: Third Row Seats

G00458795

Courtesy of FORD MOTOR CO.

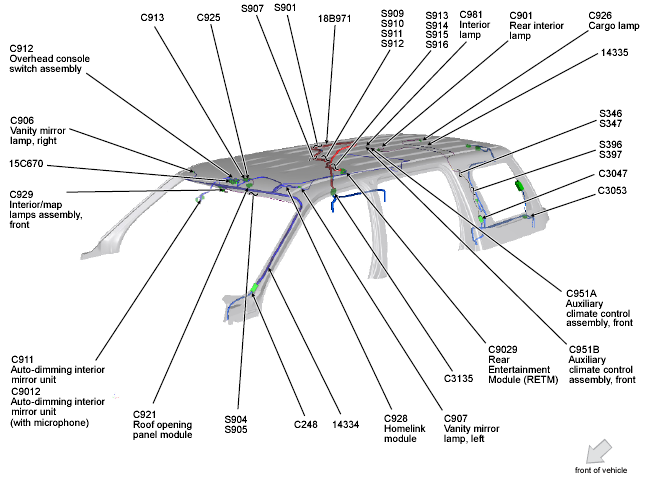

Fig 39: Roof (Sport Trac)

G00476499

Courtesy of FORD MOTOR CO.

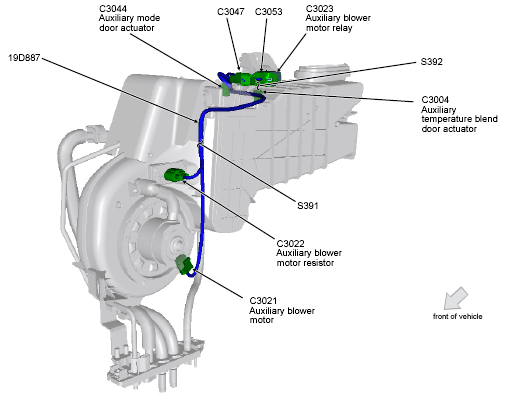

Fig 40: Auxiliary Blower Assembly

G00476502

Courtesy of FORD MOTOR CO.

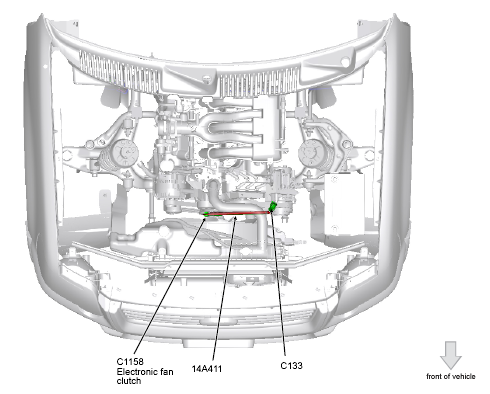

Fig 41: Engine Compartment (4.0L)

G00475589

Courtesy of FORD MOTOR CO.

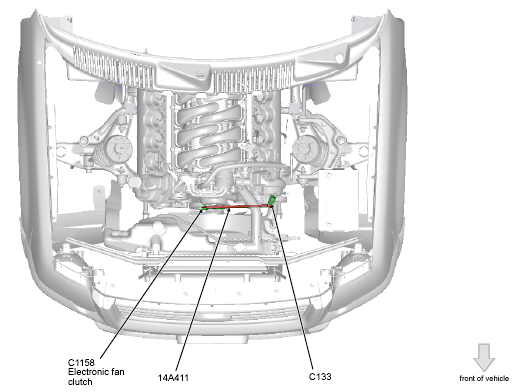

Fig 42: Engine Compartment (4.6L)

G00476483

Courtesy of FORD MOTOR CO.
