Communications Network: Notes
Vehicle communication utilizes both medium and high speed controller area network (CAN) communications. CAN is used for many modules to communicate with each other on a common network. CAN in-vehicle networking, is a method for transferring data among distributed electronic modules via serial data bus. Without serial networking, intermodule communication requires dedicated, point to point wiring resulting in bulky, expensive, complex, and difficult to install wiring harnesses. Applying a serial data network reduces the number of wires, combining the signals on a single network. Information is sent to the individual control modules that control each function.

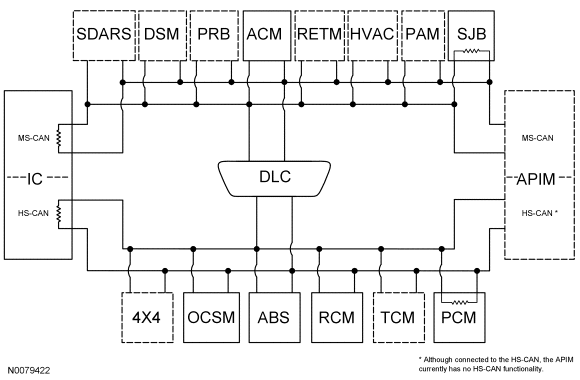

The vehicle has 2 module communication networks:
- Medium speed (MS) CAN
- High speed (HS) CAN
Both networks are connected to the data link connector (DLC). This makes diagnosis and testing of these systems easier by allowing one scan tool to be able to diagnose and control any module on both networks from one connector. The DLC can be found under the instrument panel between the steering column and the audio unit.
| Module Name | Network Type | Termination Module |
|---|---|---|
| ABS module | HS-CAN | No |
| Accessory protocol interface module (APIM) | HS-CAN MS-CAN |
No No |
| Audio control module (ACM) | MS-CAN | No |
| Rear entertainment module (RETM) (if equipped) | MS-CAN | No |
| Driver seat module (DSM) (if equipped) | MS-CAN | No |
| Heating ventilation air conditioning (HVAC) module (if equipped) | MS-CAN | No |
| 4X4 control module (if equipped) | HS-CAN | No |
| Instrument cluster (IC) (gateway module) | HS-CAN MS-CAN |
Yes Yes |
| Occupant classification system module (OCSM) | HS-CAN | No |
| Parking aid module (PAM) (if equipped) | MS-CAN | No |
| PCM | HS-CAN | Yes |
| Power running board (PRB) module (if equipped) | MS-CAN | No |
| Restraints control module (RCM) | HS-CAN | No |
| Satellite digital audio receiver system (SDARS) module (if equipped) | MS-CAN | No |
| Smart junction box (SJB) | MS-CAN | Yes |
| Transmission control module (TCM) (if equipped) | HS-CAN | No |
