Parking Aid Module (PAM): Notes

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

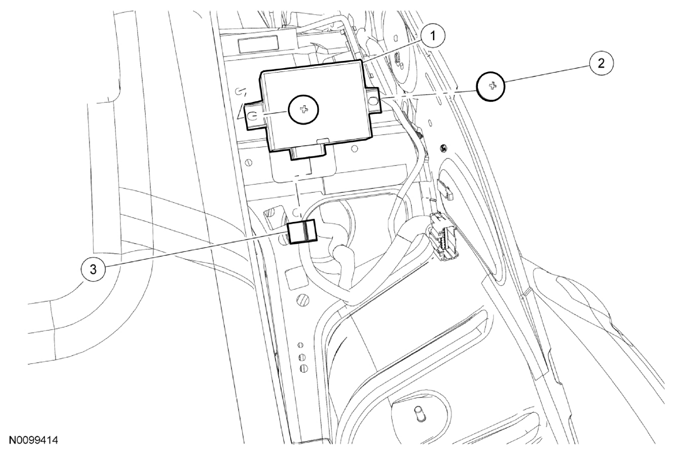

Fig 1: Identifying Parking Aid Module Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	15K866	Parking Aid Module (PAM)
2	W706350	PAM screws (2 required)
3	-	PAM electrical connectors (part of 13A412)
