Overhead Console Switch Assembly Connector - C912

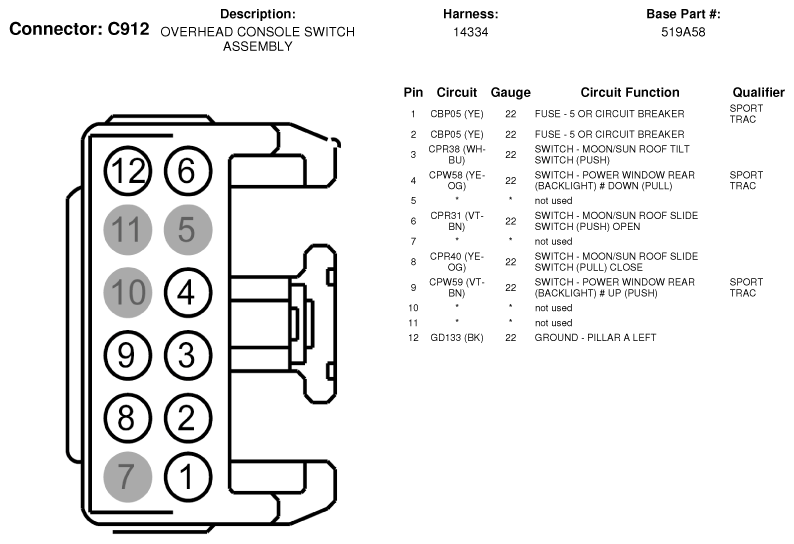

Fig 1: Overhead Console Switch Assembly Connector End View (C912)
G06304578Courtesy of FORD MOTOR CO.
