Test JD: Crankshaft Position (CKP) Sensor

PINPOINT TEST JD: CRANKSHAFT POSITION (CKP) SENSOR

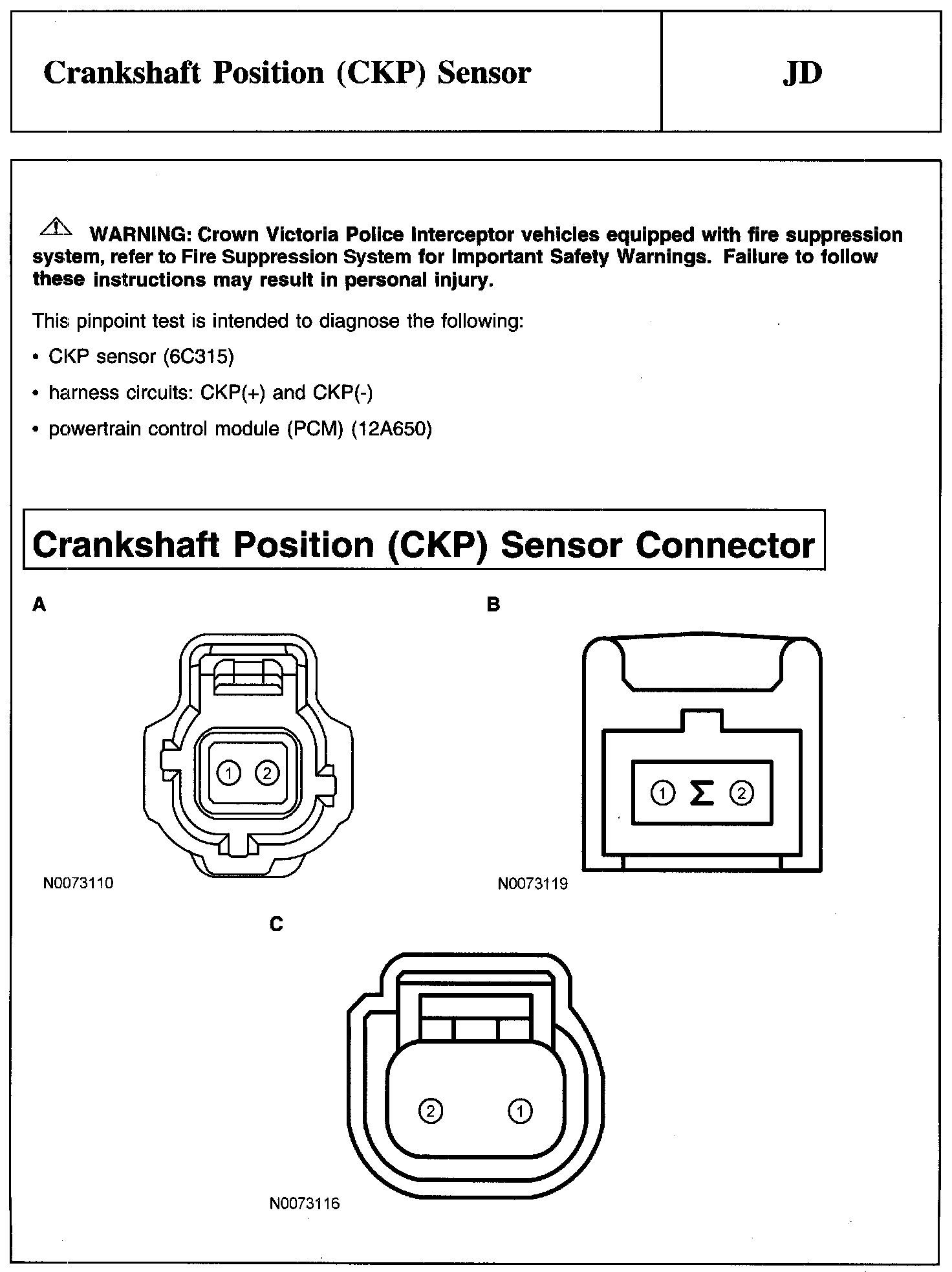

Warning And Crankshaft Position (CKP) Sensor Connector:

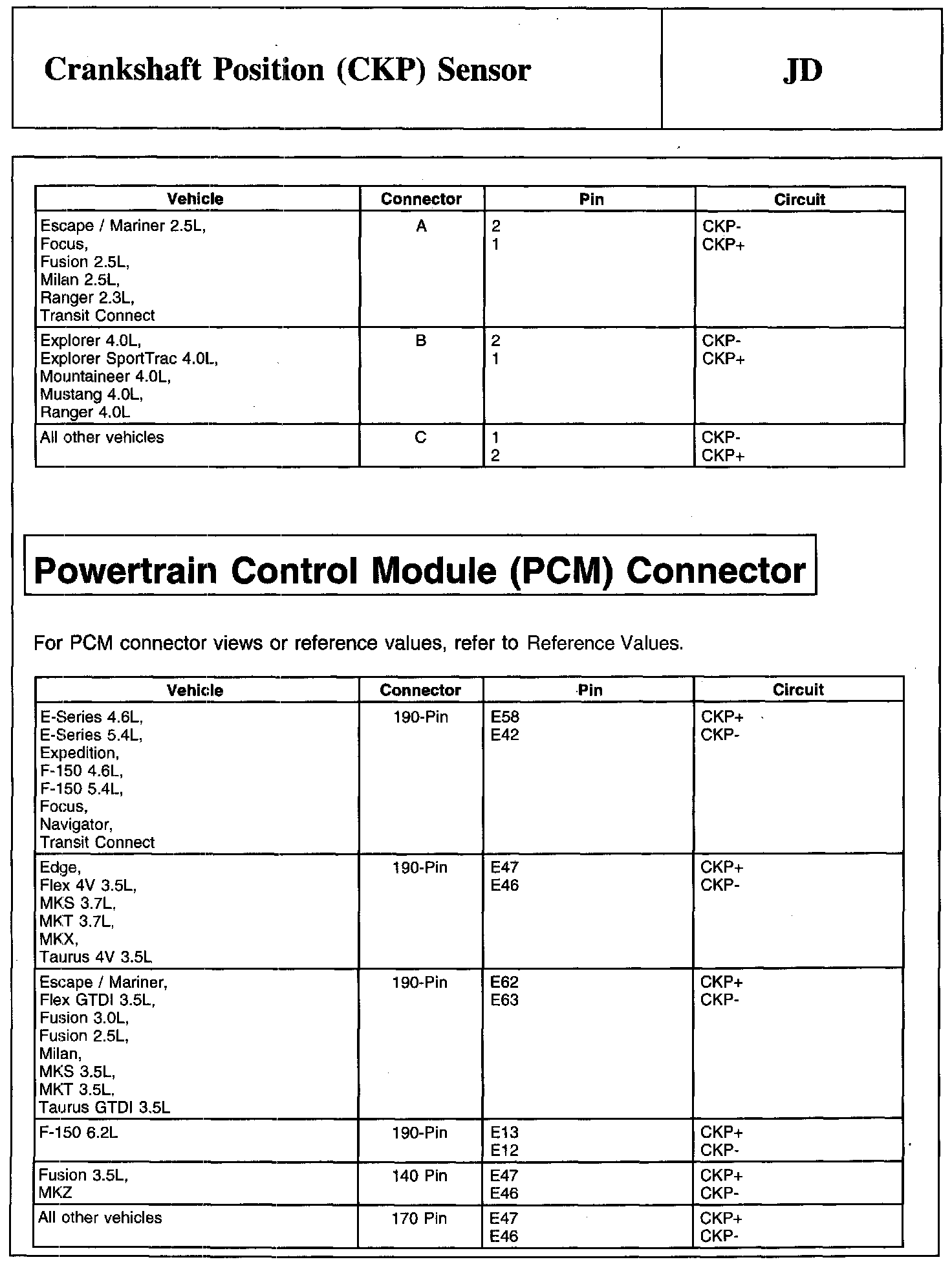

Crankshaft Position (CKP) Sensor Connector And Powertrain Control Module (PCM) Connector:

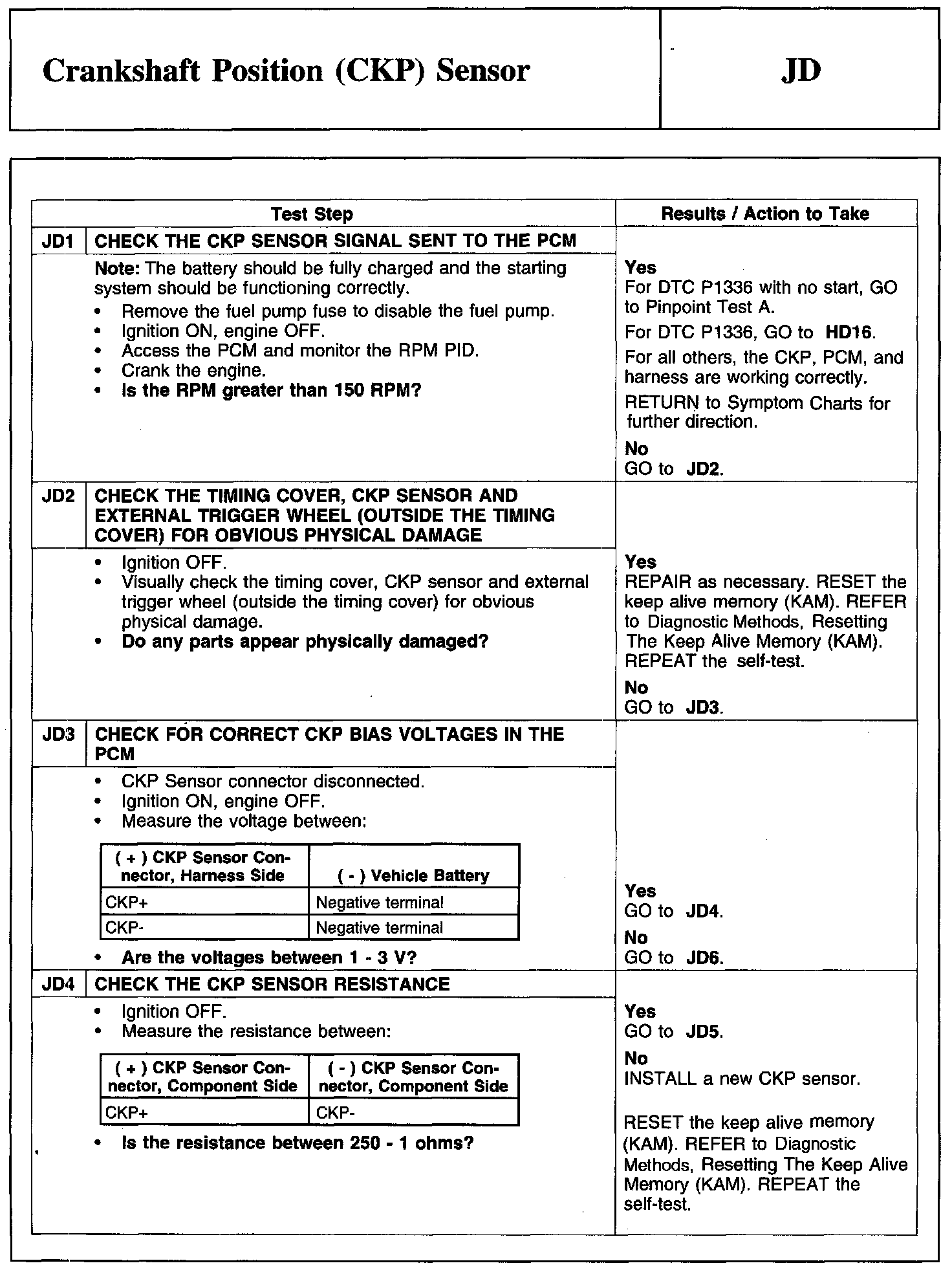

JD1-JD4:

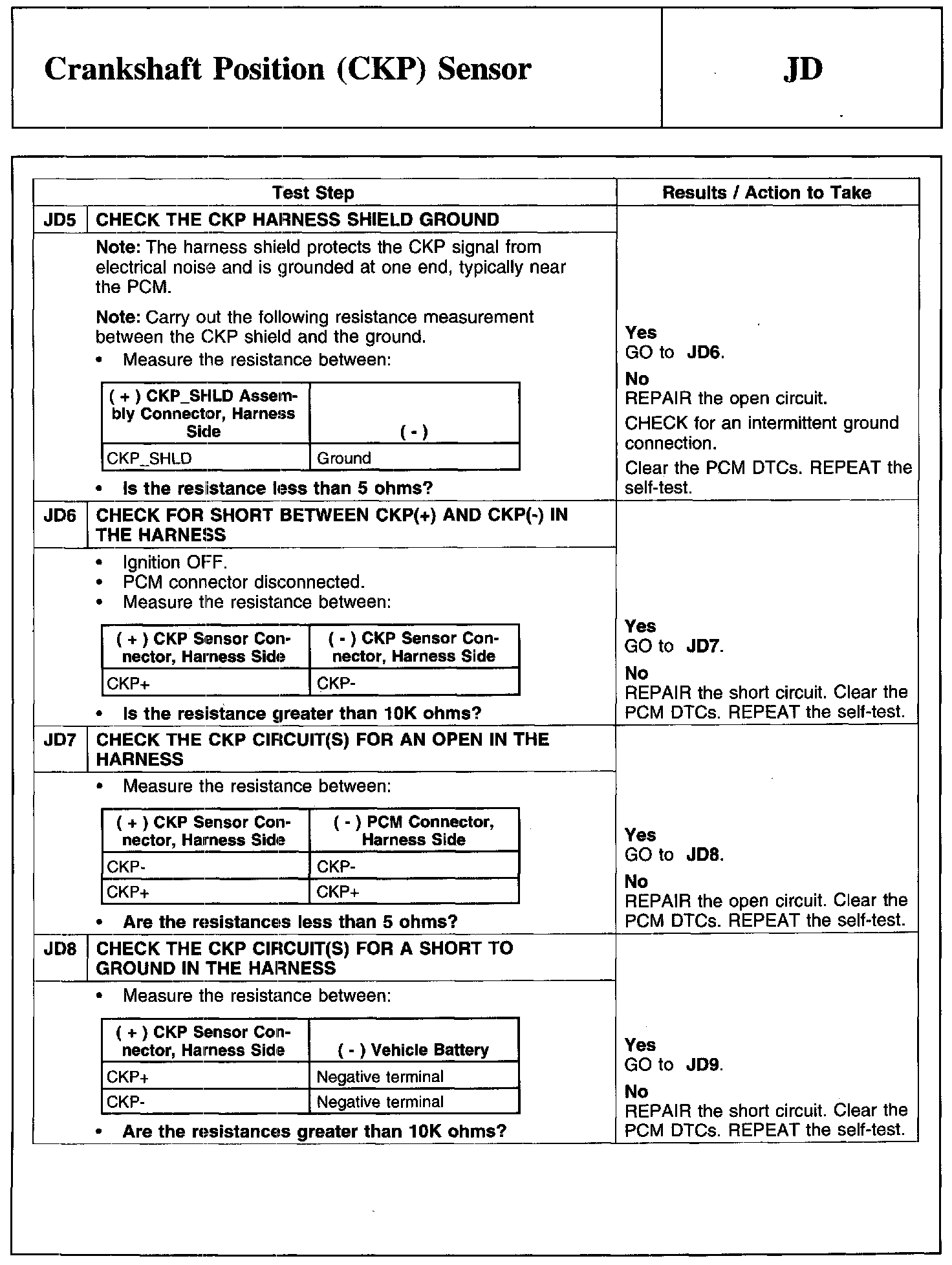

JD5-JD8:

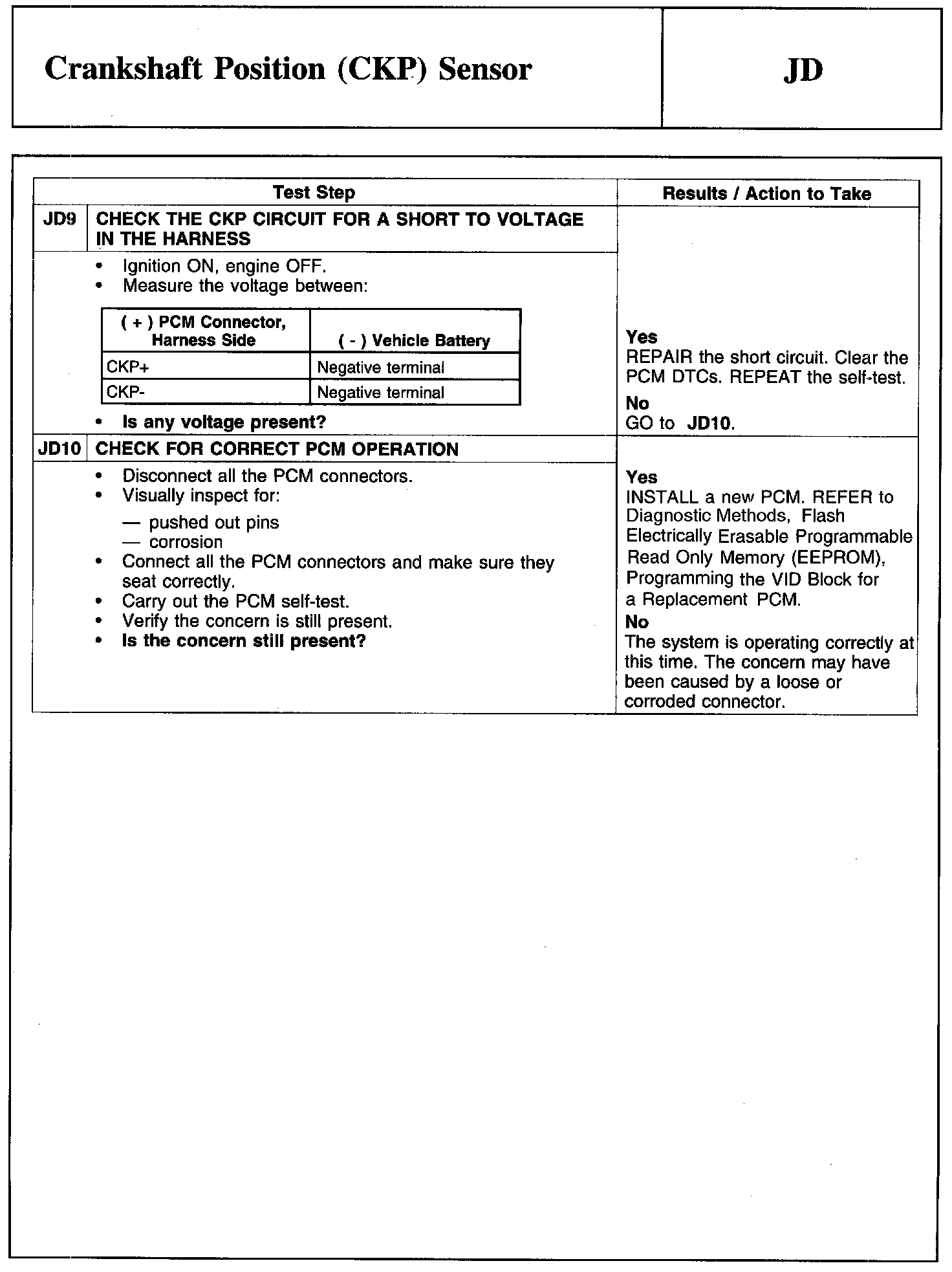

JD9-JD10:
