Intake Manifold

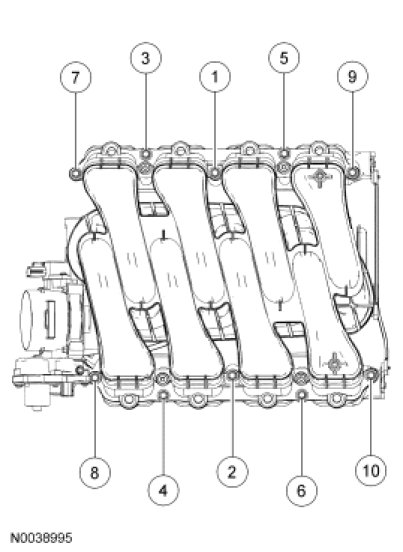

Install the 10 intake manifold bolts and tighten the bolts in the sequence shown in 2 stages.
Stage 1: Tighten finger-tight.
Stage 2: Tighten to 10 Nm (89 lb-in).
Stage 3: Tighten an additional 60 degrees.
Stage 4: Loosen all 10 bolts a minimum of 1 full turn (360 degrees).
Stage 5: Tighten to 10 Nm (89 lb-in).
Stage 6: Tighten an additional 60 degrees.
