Camshaft Position Sensor: Service and Repair

Camshaft Position (CMP) Sensor - 4.6L (3V), 5.4L (3V)

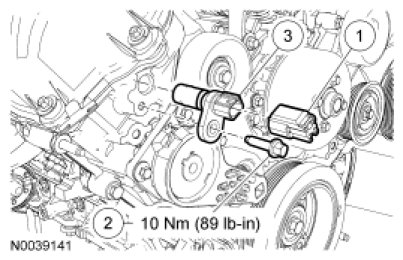

Camshaft Position Sensor - RH

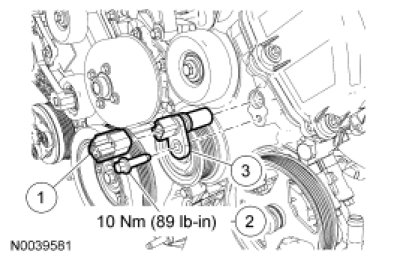

Camshaft Position Sensor - LH









Removal and Installation

LH side

1. Remove the Air Cleaner (ACL) outlet pipe and resonator. For additional information, refer to Fuel Delivery and Air Induction.

Both sides

2. Disconnect the Camshaft Position (CMP) sensor electrical connector.

3. Remove the bolt and the CMP sensor.
- To install, tighten to 10 Nm (89 lb-in).

4. To install, reverse the removal procedure.
- Lubricate the CMP sensor O-ring seal with clean engine oil prior to installation.
