Smart Junction Box (SJB)
Smart Junction Box (SJB)
DTC Charts

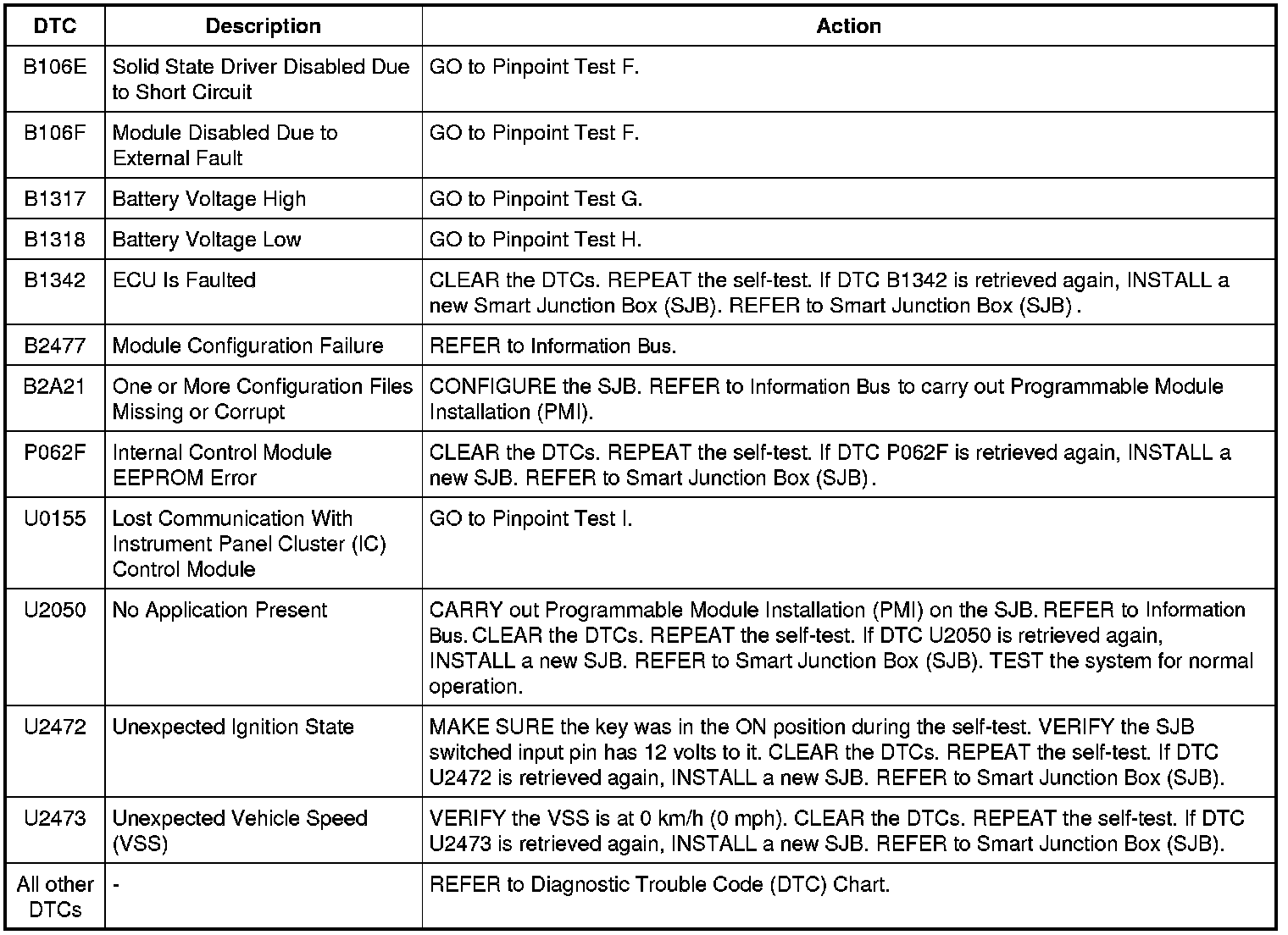

Smart Junction Box (SJB) DTC Chart
B2A21-B2477 / P062F / U0155-U2473:
