Control Assembly: Service and Repair

Heating Ventilation Air Conditioning (HVAC) Module

With Navigation System









Without Navigation System









Removal and Installation

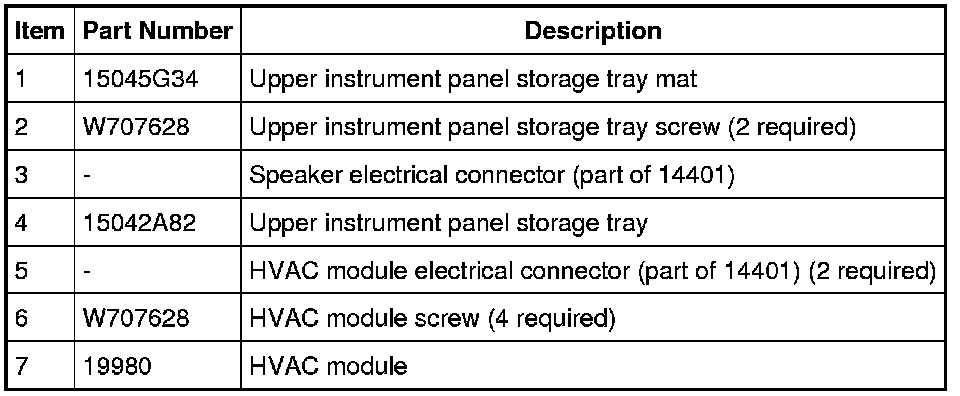

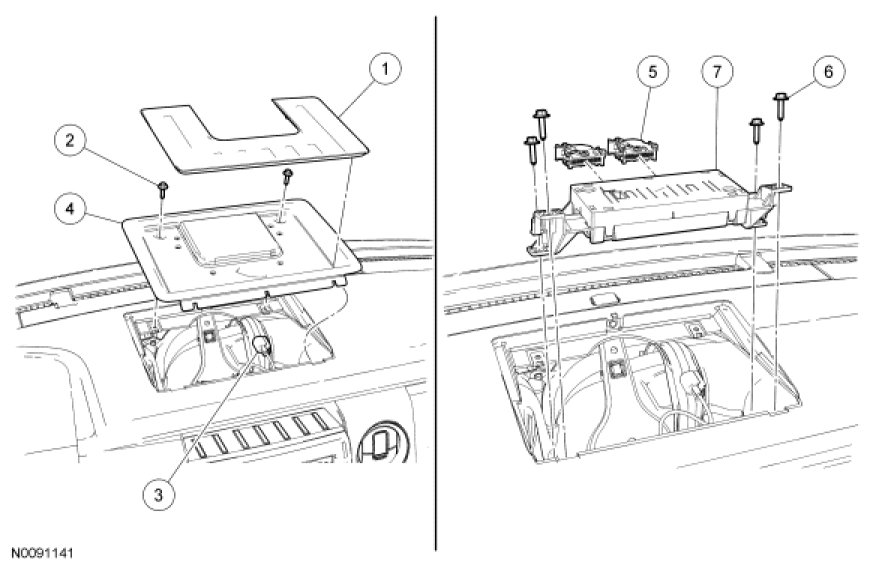

With navigation system

1. Remove the upper instrument panel storage tray mat.

2. Remove the 2 upper instrument panel storage tray screws.

3. Disconnect the speaker electrical connector (if equipped).

4. Remove the upper instrument panel storage tray.

5. Disconnect the 2 HVAC module electrical connectors.

Vehicles without navigation system

6. Remove the center instrument panel finish panel. For additional information, refer to Instrument Cluster / Carrier &/or Interior Moulding / Trim.

All vehicles

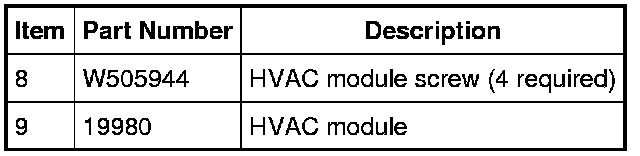

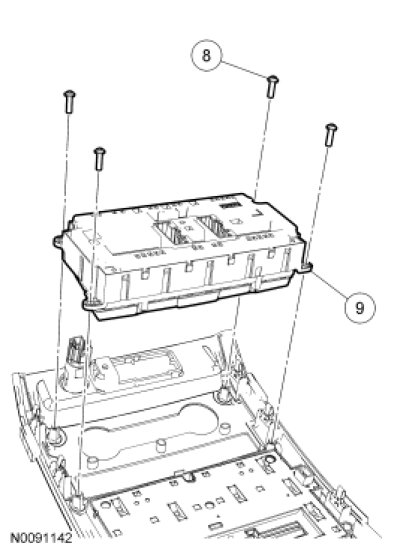

7. Remove the 4 HVAC module screws.

8. Remove the HVAC module.

9. To install, reverse the removal procedure.
