Air Flow Meter/Sensor: Service and Repair

Mass Air Flow (MAF) Sensor

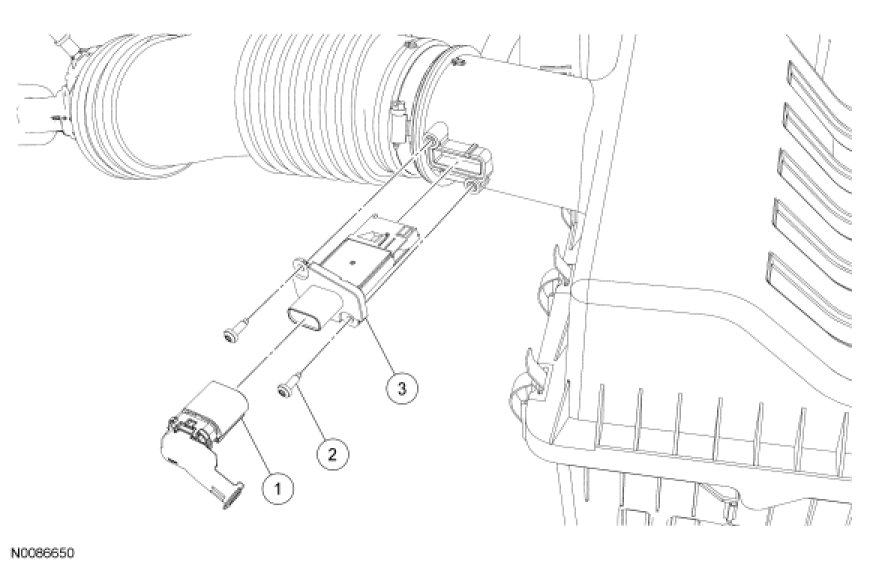

Removal and Installation

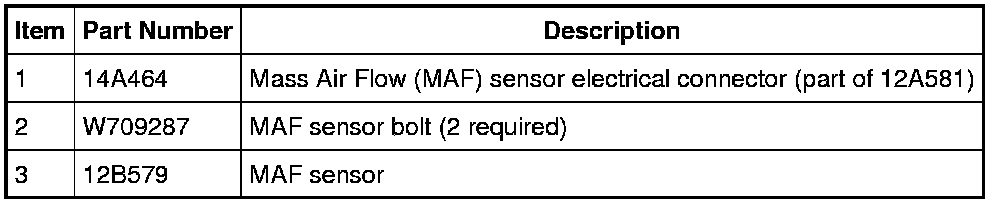

1. Disconnect the Mass Air Flow (MAF) sensor electrical connector.

2. Remove the bolts and the MAF sensor.

3. To install, reverse the removal procedure.
