Engine Temperature Sensor: Service and Repair

Cylinder Head Temperature (CHT) Sensor - 6.2L (2V)









Removal and Installation

1. Remove the intake manifold. For additional information, refer to Engine.

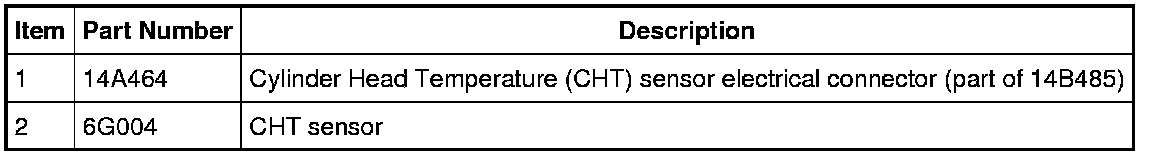

2. Disconnect the Cylinder Head Temperature (CHT) sensor electrical connector.

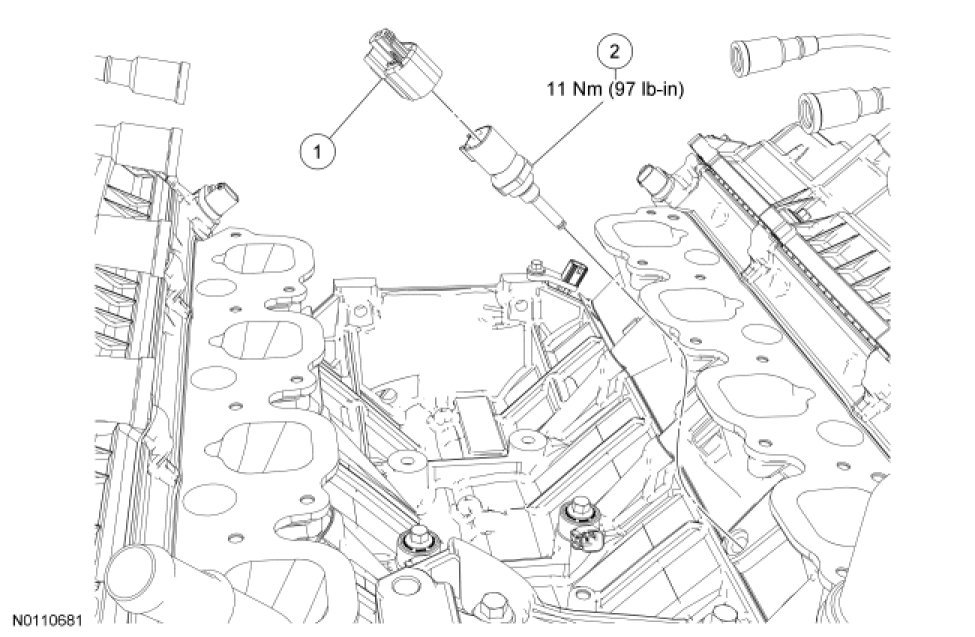

3. Remove the CHT sensor.
- To install, tighten to 11 Nm (97 lb-in).

4. To install, reverse the removal procedure.
