Steering Column Shroud

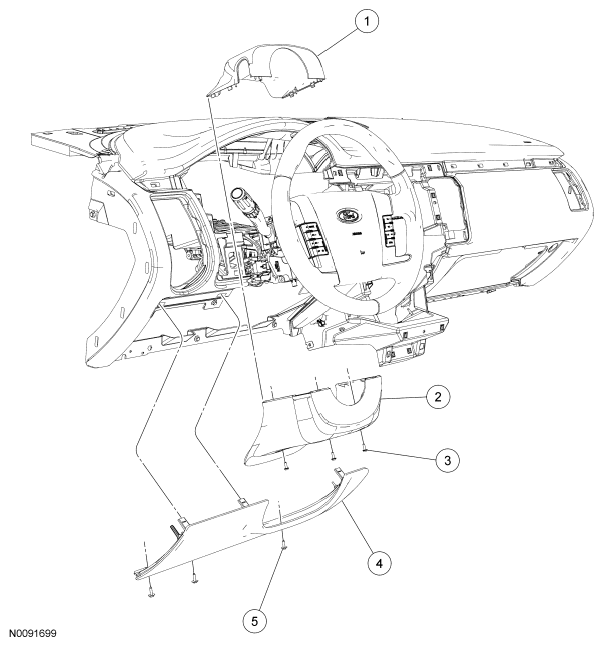

Fig 1: Exploded View Of Steering Column Shroud

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	3530	Upper steering column shroud
2	3533	Lower steering column shroud
3	N706731	Steering column shroud screw (3 required)
4	044F08	Steering column opening trim panel
5	N808453	Steering column opening trim panel screw (3 required)

All vehicles

Remove the 3 screws and the steering column opening trim panel.
Using a non-marring tool, pry upward and separate the upper steering column shroud from the lower steering column shroud.
Late build vehicles
Position the upper steering column shroud upward.

Fig 2: Positioning Upper Steering Column Shroud Upward
Courtesy of FORD MOTOR CO.
Press the retaining tabs at the locations shown in illustration and separate the upper steering column shroud from the instrument cluster finish panel.

Fig 3: Retaining Tabs Press Location
Courtesy of FORD MOTOR CO.

All vehicles
Remove the 3 screws and the lower steering column shroud.
