HVAC Module DTC Chart
Climate Control System
DTC Charts
HVAC Module DTC Chart
NOTE:
Some PCM DTCs may inhibit A/C operation. If any PCM DTCs are retrieved, diagnose those first. Refer to the PCM DTC Chart.
PCM DTC Chart

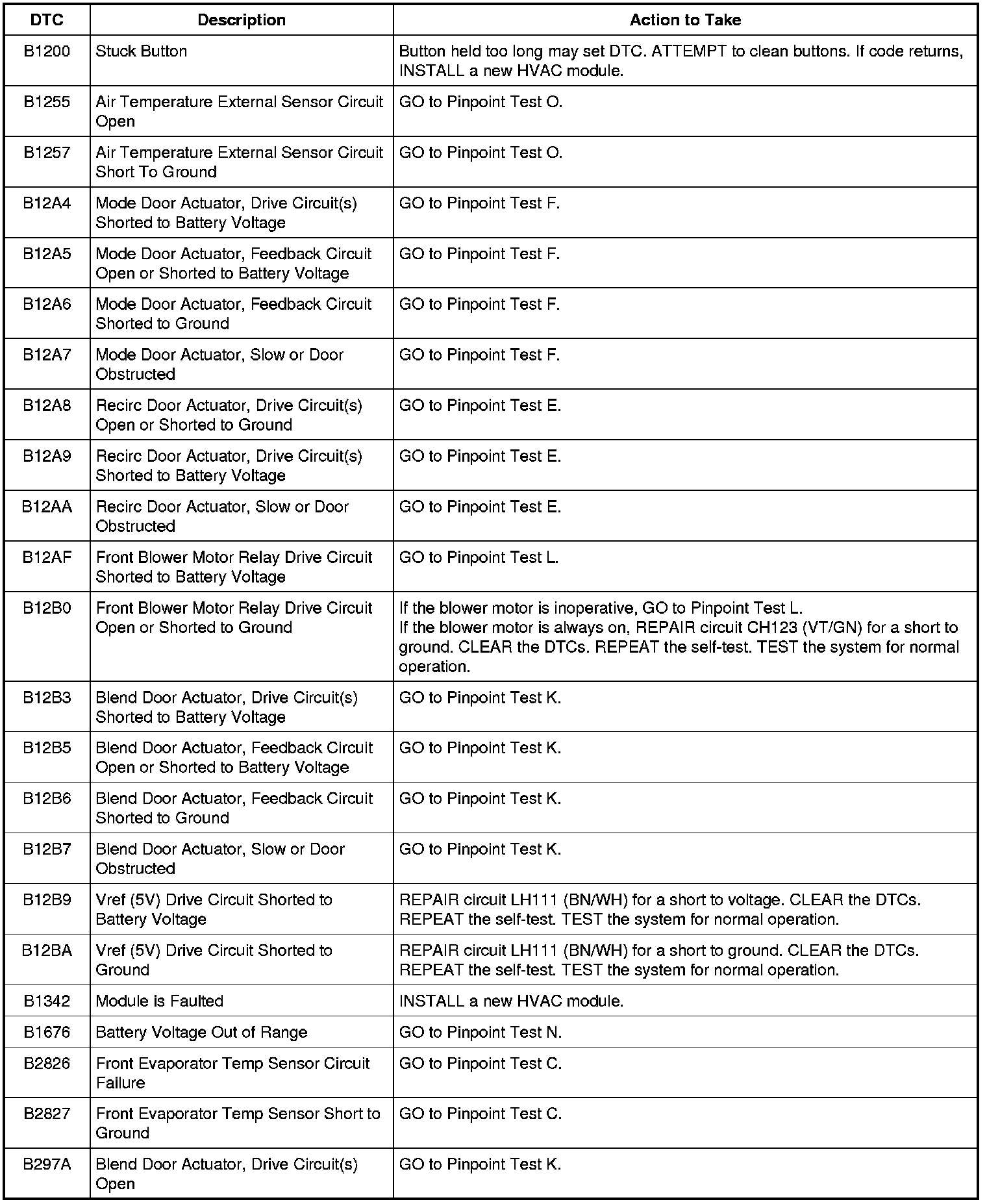

B12AA-B2827:

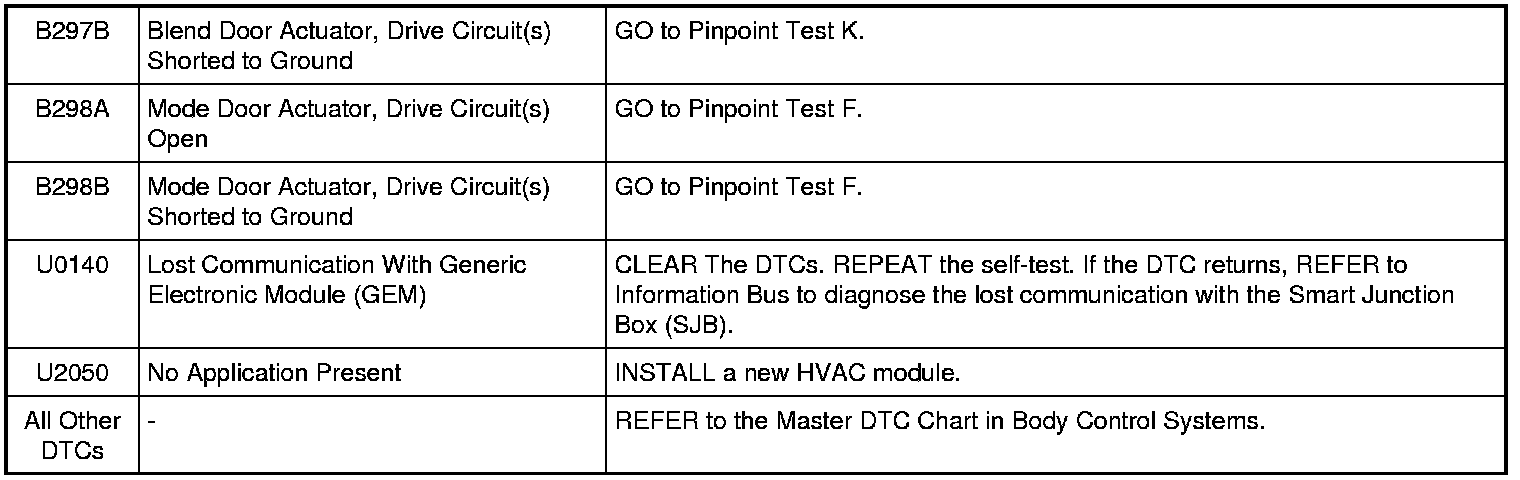

B297B-B298B / U0140-U2050:
