Main Control Valve Body: Assembly

Install a new separator plate and gasket assembly.

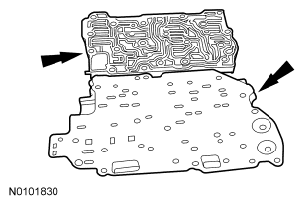

Fig 1: Locating Separator Plate And Gasket Assembly
Courtesy of FORD MOTOR CO.
NOTE: Do not fully tighten the bolts at this stage.

Assemble the main control valve body and loosely install the bolts.

Fig 2: Locating Main Control Valve Body Bolts
Courtesy of FORD MOTOR CO.
Install the seals.

Fig 3: Locating Seals
Courtesy of FORD MOTOR CO.
Install a new solenoid body gasket.

Fig 4: Locating Solenoid Body Gaskets
Courtesy of FORD MOTOR CO.
Install the solenoid body and loosely install the bolts.

Fig 5: Locating Solenoid Body Bolts
Courtesy of FORD MOTOR CO.
Tighten the solenoid body bolts in the sequence shown in illustration.
- Tighten to 9 Nm (80 lb-in).
Fig 6: Tightening Solenoid Body Bolts In Sequence
Courtesy of FORD MOTOR CO.
