Master window control switch - Coupe: Schematic

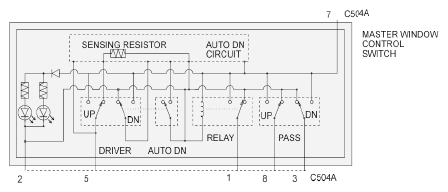

Fig 1: Master Window Control Switch (Coupe) - Schematic

G06357948

Courtesy of FORD MOTOR CO.
