Exhaust Gas Recirculation (EGR) System Components - Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

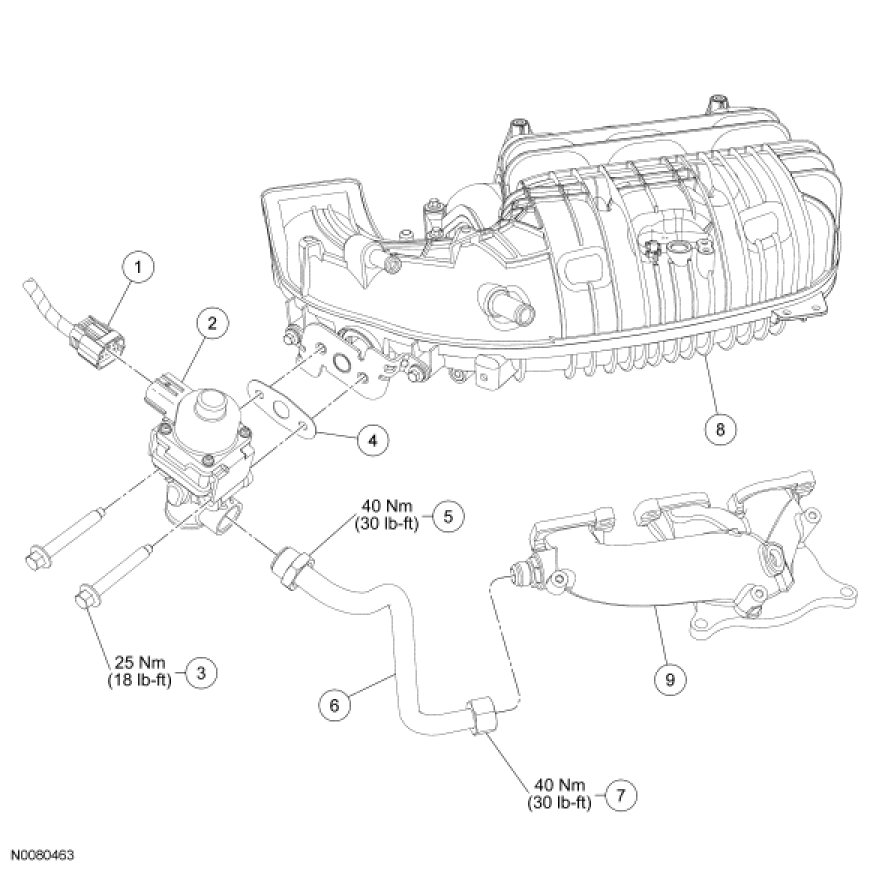

Exhaust Gas Recirculation (EGR) System Components - Exploded View

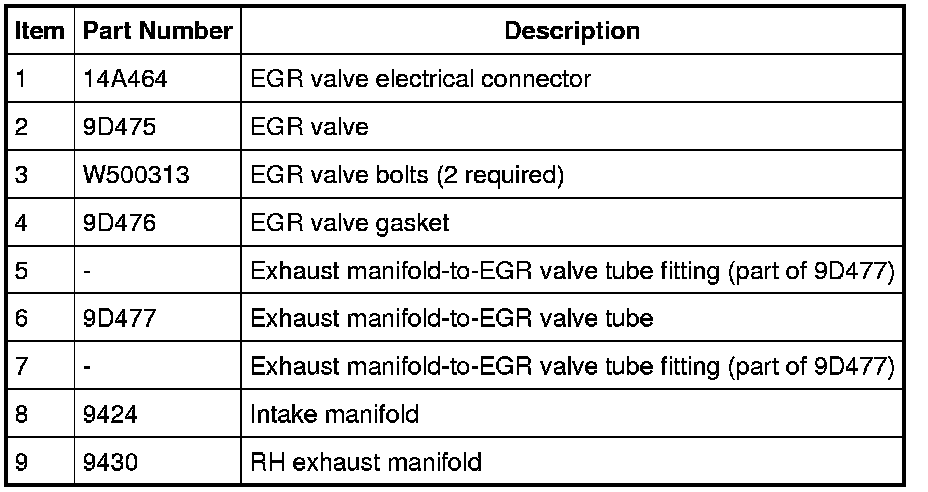

Exhaust Gas Recirculation (EGR) System Components - Exploded View
