Fuel Pump Driver Module (FPDM): Notes

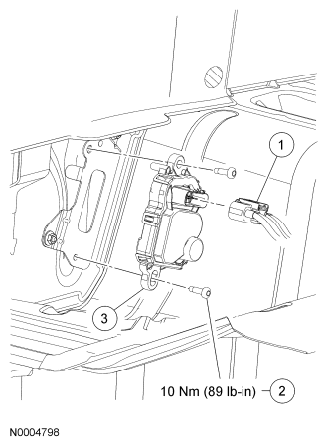

Fig 1: Fuel Pump Driver Module (FPDM), FPDM Connector And FPDM Bolts With Torque Specifications
G06382370Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 14A464 Fuel Pump Driver Module (FPDM) electrical connector (part of 14A005)
2 W504755 FPDM  bolt (2 required)
3 9D370 FPDM
