Charge Motion Control Valve (CMCV) - 4.6L (3V): Notes

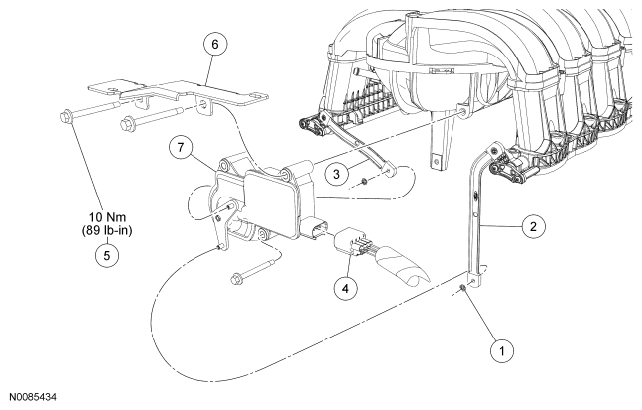

Fig 1: Charge Motion Control Valve (CMCV) -- 4.6L (3V) With Torque Specifications

Courtesy of FORD MOTOR CO.

PART NUMBER REFERENCE

Item	Part Number	Description
1	W710420	E-clip (2 required)
2	9S523	RH Charge Motion Control Valve (CMCV) linkage
3	9S523	LH CMCV  linkage
4	14A464	CMCV  electrical connector
5	W708165	CMCV  bolt (3 required)
6	-	CMCV  bracket
7	9G730	CMCV
