Fuel Tank Pressure (FTP) Sensor

The FTP sensor or in-line FTP sensor is used to measure the fuel tank pressure.

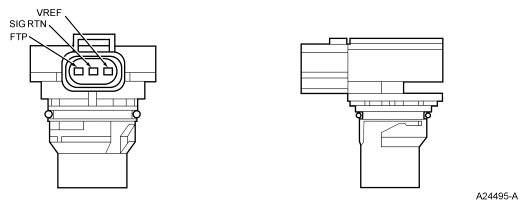

Fig 1: Typical In-Tank FTP Sensor
G06290506Courtesy of FORD MOTOR CO.
Fig 2: Typical In-Line FTP Sensor
G06053884Courtesy of FORD MOTOR CO.
