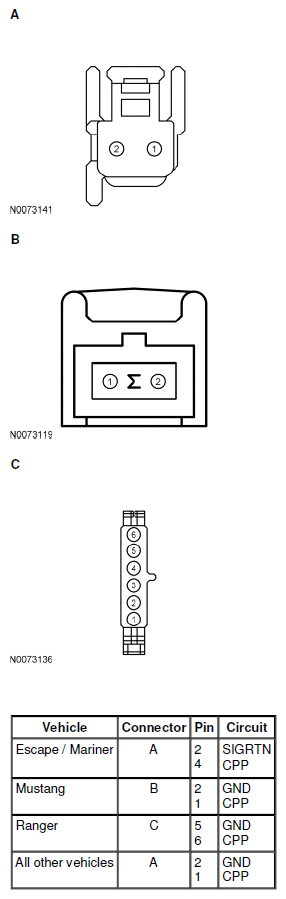

Pinpoint Test TA: Clutch Pedal Position (CPP) Switch: Introduction
This pinpoint test is intended to diagnose the following:
- CPP switch (11A152/7C534)
- harness circuits: CPP/CPP-BT and SIGRTN/GND
- powertrain control module (PCM) (12A650)
For PCM connector views or reference values, refer to REFERENCE VALUES .
POWERTRAIN CONTROL MODULE (PCM) CONNECTOR PIN REFERENCE CHART
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Escape/Mariner | 190-Pin | B56, E49, T41 T27 |
SIGRTN CPP |
| F-Series Super Duty | 170 Pin | B34 B41, E58, T41 |
CPP-BT SIGRTN |
| Fusion, Milan |
190-Pin | T26 B56, E49, T41 |
CPP-BT SIGRTN |
| Mustang, Ranger |
170 Pin | B41, E58, T41 B33 |
SIGRTN CPP |
| All other vehicles | 190-Pin | T26 B58, E64, T40 |
CPP-BT SIGRTN |
