Primary Fuel Pump Driver Module Connector - C4335

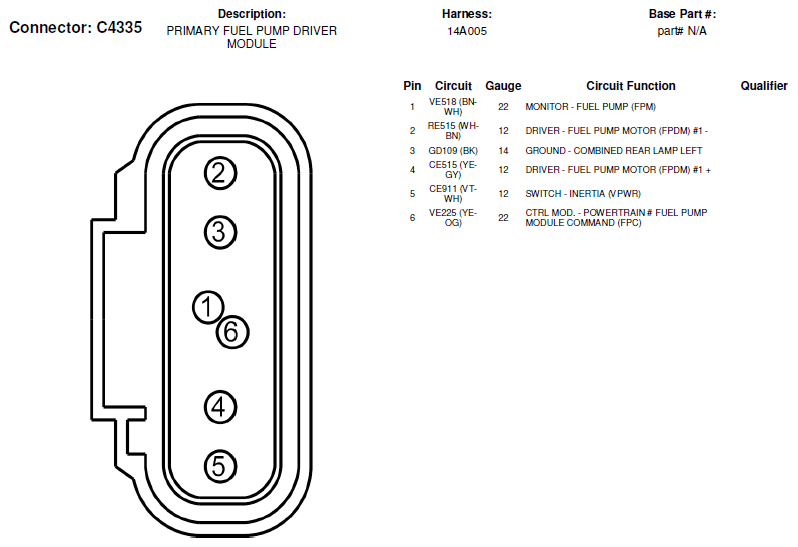

Fig 1: Primary Fuel Pump Driver Module Connector End View (C4335)
G06374870Courtesy of FORD MOTOR CO.
