Output Shaft Ring Gear and Hub Shaft Assembly: Assembly

Install the output shaft ring gear onto the output shaft hub.
1. Install the output shaft ring gear.
2. Install the retaining ring.

  Fig 1: Identifying Output Shaft Ring Gear And Retaining Ring
  Courtesy of FORD MOTOR CO.

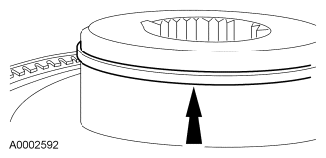

Install the seal.

Fig 2: Locating Seal
Courtesy of FORD MOTOR CO.
